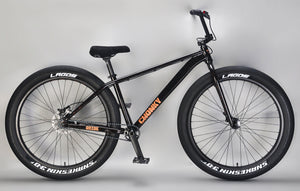

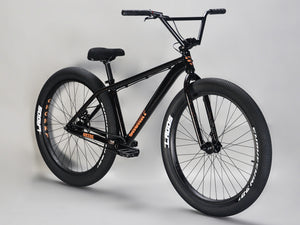

CHONKY: big, fat, retro and mean.
Ever since we started making cruisers designed for wheelies, customers have begged us to design and manufacture a fat. It’s taken over 2 years of meticulous design, prototyping and testing to perfect CHONKY.
The result is a class leading machine that’s light weight, high spec, with strength and durability in all the right places. Featuring our own hydroformed tubing (not to be found on any other brands), the frame looks totally sick with care fully selected geometry, smooth lines and ultra fine detailing. You will not find a more unique, cleaner looking fat cruiser on the market with so much attention to detail.
The first bikes will feature VEE 3.0” tyres but later production runs will come with our upcoming new SNAKESKIN 3.0F wheelie specific tyres (later In 2022). The forks and bars are constructed from 4130 chromoly and are designed to look clean and take a beating. The rims are wide and double skinned and the cranks are 3 - piece hollow tech with a 6061 T6 CNC alloy chain ring.
Of course, our signature wheelie seat is included along with our forged top load alloy stem. Rear wheel control and stopping power is courtesy of a Zoom hydraulic disk brake. Thanks to the fully sealed construction, the ride is as smooth as it gets. We know what geometry works for you to get the best out of a cruiser, so you can rest assured knowing this bike will facilitate work, straight out of the box.
Wanna be the best?? Then you need the best bike and CHONKY is hands down the best fat money can buy...
-
Frame: 6061 T6 Aluminium
TT: 23.8” (A)
CS: 17.4” (B)
HT: 70° (C)
ST: 72° (D)
BB: -61mm (E)
SO: 26.7” (F)
External Seat Clamp
ISO Threaded BB
CNC Headtube
Tapered Chain/Seat Stays
Ø31.6mm SeatpostFork: 4130 Chromoly
Internally Threaded, CNC Compression Cap
22mm Offset
Taper Blades w/ Peg RecessesHandlebars: W: 30” (G) · H: 6” (H), High Tensile Headset: 1 1/8” Sealed Integrated Bearings Stem: Mafiabikes Forged Top Load Grips: Mafiabikes Lucky 6 Pedals: 9/16” Mafiabikes Plastic Saddle: Mafiabikes Railed Wheelie Seat Cranks: Samox 170mm Forged Alloy Cranks, 24mm Hollow Spindle Sprocket (Front): 25T Direct Mount CNC 6061 Alloy Sprocket (Rear): 12T Cassette Chainring/Sprocket: 25T Direct Mount CNC Steel Chain: KMC 1/2" x 1/8" Front Hub: 3/8” Chromoly Heat Treated Quick Release Axle, Sealed Bearings, Disc Hub Rear Hub: 3/8” Chromoly Heat Treated Axle, Fully Sealed Bearings, 12T Cassette Rims: Wide Double Wall Alloy Tyres: Lagos Snakeskin 3.0, 27.5” x 3.0” Headtube: 100mm Seat Clamp: Ø35mm External Gearing: 25 / 12T -
All bikes purchased through City Grounds MUST be assembled by a certified bike shop mechanic. If the bike is NOT built by a certified bike shop mechanic, any warranty will be VOID. We will request for an assembly receipt as proof of professional installation.
For all warranty claims, please contact our Warranty Team at warranty@citygrounds.com. So that we can help you in a timely manner, make sure to include the following:
- 1. Order Number (we will confirm date of purchase and determine if the item is still under the manufacturer’s warranty time limit)
- 2. Brief description of the claim
- 3. Photographs
- 4. If the item is a bike or frame, include the serial number
We evaluate all warranties case-by-case to determine the best course of action and get you serviced to the best of our ability!
Warranty does not apply to the following:
- • Any part of a product that has been installed, altered, repaired, or misused
- • Damage from unintended style of riding, abuse, neglect, accident, and racing
- • Normal wear and tear of any product (including but not limited to - saddles, grips, tires, tubes, cables, brake pads, chains)
- • Failure to provide regular maintenance of any product
Labor and shipping are the responsibility of the customer. We do not cover parts purchased and labor performed by another bike shop.
Note: Warranty is for original owner only.
