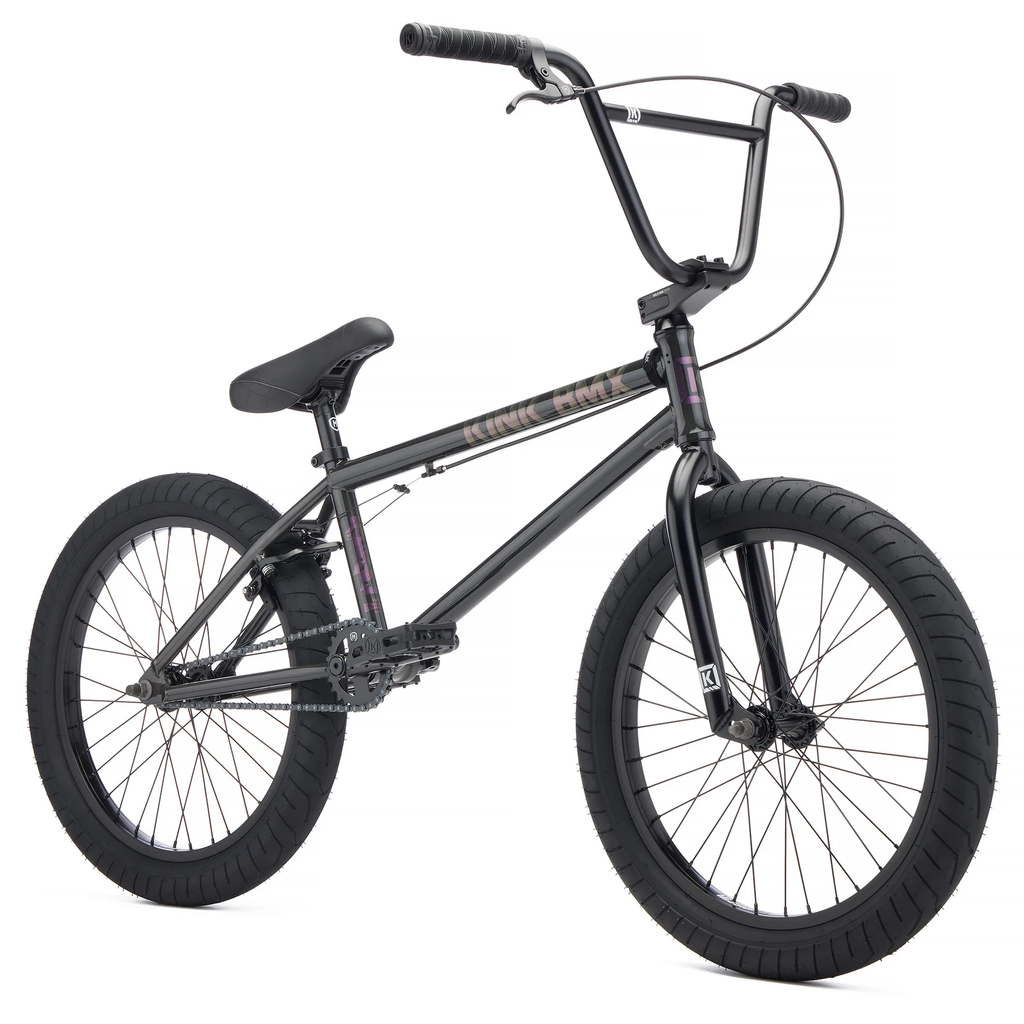

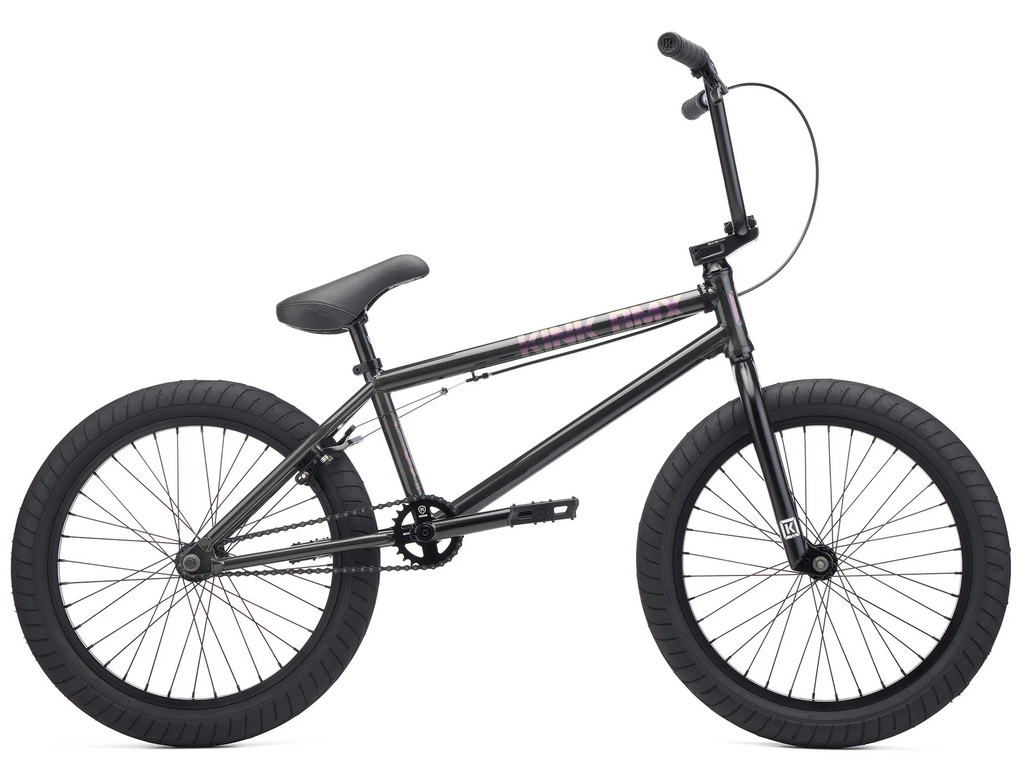

Kink BMX Setup BMX Bike

Kink BMX

Kink BMX Setup BMX Bike

$499.99
$499.99

Color:Iridescent Black
Size20"
Edit Address
CG REWARDS MEMBERS earn 499 Points with Purchase of This Product!   Learn More
Description

The all-new Kink Setup is a super versatile bike ready to handle more serious riding. This model features a 4130 chromoly frame front triangle, forks, and handlebars, improving the overall strength and longevity of the bike. Additional upgrades, such as the Stealth seat system, offer more adjustability and modern compatibility. Its moderate-to-modern geometry is also great for all types of riding. The Setup is available in Iridescent Black and Oxide Orange colorways and is also offered in an XL size for taller riders.


E-BIKE AND OCEV CLASS SYSTEMPEDAL ASSIST (TOP SPEED)THROTTLESTREET LEGAL*AGE RESTRICTION**
CLASS 1 E-BIKE20 MPHNOYESNONE
CLASS 2 E-BIKE20 MPHYESYESNONE
CLASS 3 E-BIKE28 MPHNOYES16+
OCEV (OUT-OF-CLASS ELECTRIC VEHICLE)28+ MPHYESNO18+

*E-BIKE LAWS AND REGULATIONS CAN DIFFER BY STATE AND COUNTY, PLEASE FAMILIARIZE YOURSELF WITH THE SPECIFIC LAWS IN YOUR AREA.
**AGE RESTRICTIONS FOR E-BIKES MAY DIFFER BY LOCATION, BE SURE TO REVIEW YOUR LOCAL LAWS TO STAY COMPLIANT

What Is OCEV?

According to California Bill No. 1271 (SEC.2312.5(d)), certain vehicles are specifically excluded from being classified as electric bikes under this code. These vehicles are categorized as Out of Class Electric Vehicles (OCEVs) for the following reasons:

  1. Highspeed Potential: Vehicles with two or three wheels that are designed by the manufacturer to be modifiable for speeds greater than 20 miles per hour on motor power alone or exceeding 750 watts of power.
  2. Post Sale Modifications: Any vehicle that has been modified to attain speeds greater than 20 miles per hour on motor power alone or to exceed 750 watts of power.

These exclusions ensure that only properly classified e-bikes can be markets as such, maintaining safety standards and regulatory compliance. Riders of OCEV's should be aware of the different legal requirements and responsibilities associated with these vehicles.

Additionally, OCEVs are designed to offer performance and features beyond what traditional e-bikes can provide. Always verify the intended use and ensure you are compliant with local and state regulations when operating an OCEV.
Frame Kink Setup 4130 Chromoly Front Triangle
Fork Kink Circuit 4130 Chromoly Steerer, Tapered Fork Legs
Bars Kink T900 9" 100% 4130 Chromoly
Stem Kink Bold HRD 50mm
Grips Kink Ace Flangeless
Headset Mission Sealed Integrated (41.8 x 45)
Brake Lever Mission Token
Brake Cable Mission L3 Linear
Brakes Mission Cease V2
Cranks Kink Ridge 3pc Tubular Chromoly 170mm – 8 Spline
Bottom Bracket Sealed Mid 19mm
Pedals Kink Hemlock
Chain Mission 410
Sprocket Mission Breach 25T
Front Hub Mission Covert Unsealed 3/8″ Axle
Rear Hub Mission Engage Sealed Cassette 14mm
Driver 9T
Rims Mission X7
Tires Kink Sever 2.4"
Seat Kink Plymouth Stealth
Seat Post Mission Stealth
Seat Clamp Mission Slim Clamp
Pegs N/A
Weight 26 lb 14 oz
Top Tube Length 20.5"
Chainstay Length 13.25"
Headtube Angle 75°
Seattube Angle 71°
Standover Height 9"
Bottom Bracket Height 11.6"
Fork Offset 30mm

All bikes purchased through City Grounds MUST be assembled by a certified bike shop mechanic. If the bike is NOT built by a certified bike shop mechanic, any warranty will be VOID. We will request for an assembly receipt as proof of professional installation.

For all warranty claims, please contact our Warranty Team at warranty@citygrounds.com. So that we can help you in a timely manner, make sure to include the following:

  • 1. Order Number (we will confirm date of purchase and determine if the item is still under the manufacturer’s warranty time limit)
  • 2. Brief description of the claim
  • 3. Photographs
  • 4. If the item is a bike or frame, include the serial number

We evaluate all warranties case-by-case to determine the best course of action and get you serviced to the best of our ability!

Warranty does not apply to the following:

  • • Any part of a product that has been installed, altered, repaired, or misused
  • • Damage from unintended style of riding, abuse, neglect, accident, and racing
  • • Normal wear and tear of any product (including but not limited to - saddles, grips, tires, tubes, cables, brake pads, chains)
  • • Failure to provide regular maintenance of any product

Labor and shipping are the responsibility of the customer. We do not cover parts purchased and labor performed by another bike shop.

Note: Warranty is for original owner only.
