Haro

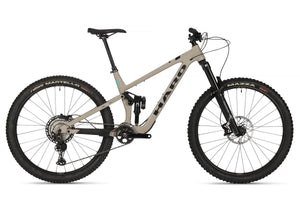

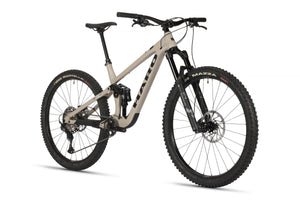

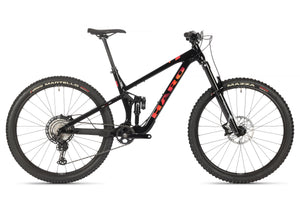

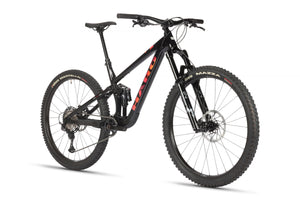

Haro Daley Alloy 1 Mountain Bike
-
Named after one of our go-to trail networks, the Daley is our all-new, all-mountain 29er, ready for the climb & grind. Starting with our exclusive aluminum frame design, the Daley is built on a trusted suspension platform with 150/140mm travel, custom tuned for each spec level. This is our go-to all mountain machine: Playful on the trails, with maximum traction through the turns and on the climbs. Ready to launch the jumps, turn and burn. No gimmicks, nothing wacky, just everything you need for days in the dirt.
-
Frame Haro Daley alloy full-suspension frame, 1-1/8" - 1-1/5" tapered head tube, 148mm Boost OLD, UDH derailleur hanger Fork Marzocchi Bomber Z1, Rail - sweep adjust, 150mm travel Frame Shock Marzocchi Bomber Air, sweep adjust, 140mm travel Crankset Shimano XT, FC-M8120-1, 32T, 165mm, 55:CL Pedals N/A Chain Shimano CN-M8100 HG 12-speed Bottom Bracket Shimano BB-MT501 BSA 68/ 73mm Front Derailleur N/A Rear Derailleur Shimano XT 12-speed, Shadow Plus, RD-M8100 Derailleur Shifter(s) Shimano XT 12-speed, SL-M8100R Freewheel | Cassette Shimano XT 12-speed CS-M8100, Hyper Glide Plus, 10-51T Tires Front: Vittoria Mazza 2.4", enduro G2.0 120TPI / Rear: Vittoria Martello 2.4" enduro G2.0 120TPI Wheels | Rims WTB KOM Trail, I30, sleeved double-wall alloy, 28H TSC 2.0 Hubs Alloy CNC, 4 sealed bearings, 110 x 15 front axle, 148 x 12 rear axle with 5-pawl driver Brakes TRP Slate EVO 4-piston hydraulic disc with 203mm front rotor and 180mm rear rotor Brake Lever(s) TRP Slate EVO Grips | Tape WTB Wavelength 130mm lock-on Handle Bar Race Face Chester 35mm OD, 780mm wide, 35mm rise Stem Race Face Chester 35mm ID, 40mm Reach Headset FSA ORBIT 1.5E ZS/ NO.57E tapered, 44/56mm head tube Saddle WTB Volt Medium, PU leather, Flex Tuned, with ABR corners Seat Post Kind Shock Rage-i dropper post, 34.9mm OD. Lengths: Small 150mm, Medium 170mm, Large 200mm, X-Large 200mm Seat Post Clamp 3D forged 6061 aluminum, 38.9mm ID Extras Includes tubeless valves and sealant -
All bikes purchased through City Grounds MUST be assembled by a certified bike shop mechanic. If the bike is NOT built by a certified bike shop mechanic, any warranty will be VOID. We will request for an assembly receipt as proof of professional installation.
For all warranty claims, please contact our Warranty Team at warranty@citygrounds.com. So that we can help you in a timely manner, make sure to include the following:
- 1. Order Number (we will confirm date of purchase and determine if the item is still under the manufacturer’s warranty time limit)
- 2. Brief description of the claim
- 3. Photographs
- 4. If the item is a bike or frame, include the serial number
We evaluate all warranties case-by-case to determine the best course of action and get you serviced to the best of our ability!
Warranty does not apply to the following:
- • Any part of a product that has been installed, altered, repaired, or misused
- • Damage from unintended style of riding, abuse, neglect, accident, and racing
- • Normal wear and tear of any product (including but not limited to - saddles, grips, tires, tubes, cables, brake pads, chains)
- • Failure to provide regular maintenance of any product
Labor and shipping are the responsibility of the customer. We do not cover parts purchased and labor performed by another bike shop.
Note: Warranty is for original owner only.
