Matte Stealth

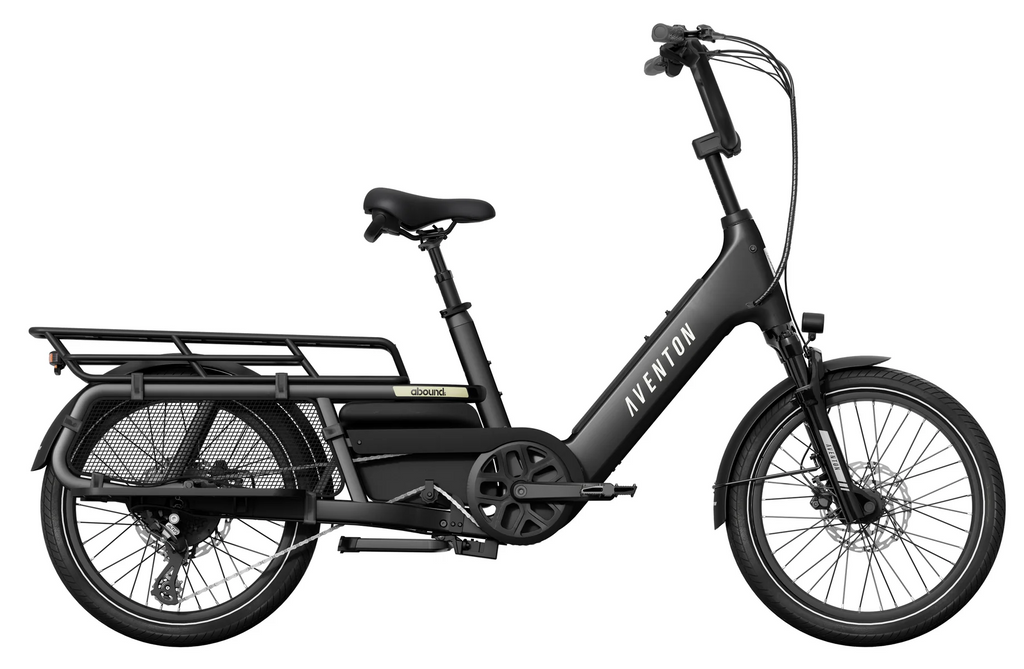

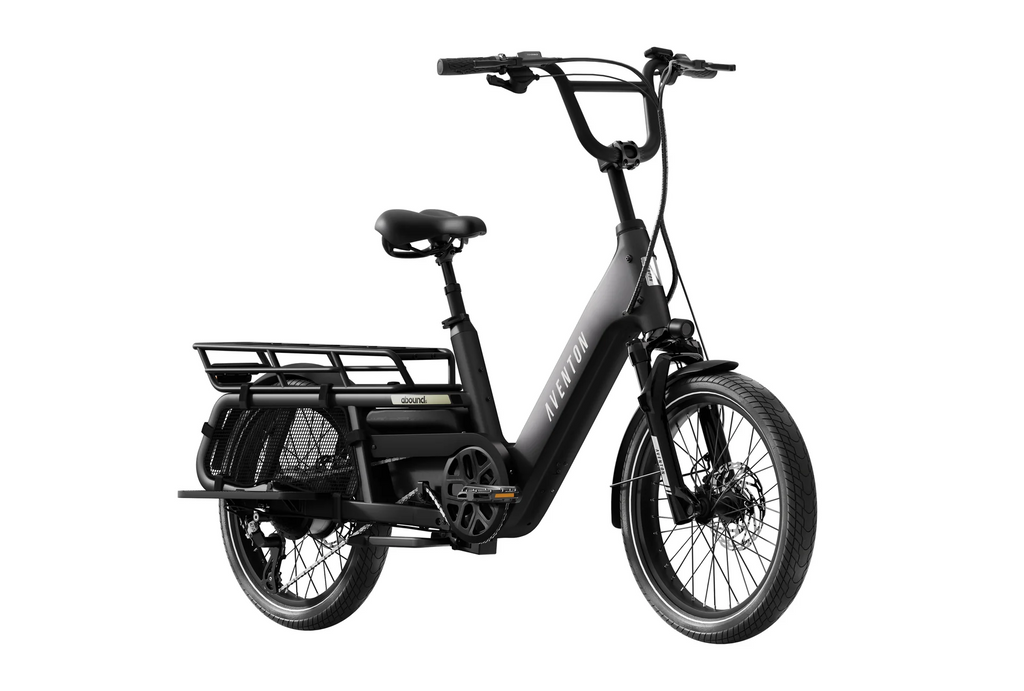

Aventon Abound LR Electric Cargo Bike

Matte Stealth / ONE SIZE
$1,999.00
$1,999.00
Skip to product information
Matte Stealth
  • Matte Stealth
  • Matte Stealth
Aventon Abound LR Electric Cargo Bike

Aventon

Aventon Abound LR Electric Cargo Bike

$1,999.00
$1,999.00

Color:Matte Stealth
SizeONE SIZE
Edit Address
CG REWARDS MEMBERS earn 1999 Points with Purchase of This Product!   Learn More
Description

The Abound LR is the answer to all your cargo conundrums! The 750W motor, long rear rack, and 440lb payload capacity make this the ultimate cargo carrier. Whether you're loading up the kids, your beach day essentials, or your most ambitious grocery haul, the Abound LR is ready to take on any challenge. With a gravity cast frame, adjustable quill stem, front suspension, and suspension seatpost, you can ride confidently and comfortably no matter what you're bringing along. With the addition of ACU technology, you'll rest assured knowing you can locate and control your bike from anywhere. The possibilities for what you can carry are endless, so load up and enjoy the ride with Abound LR.

The Abound LR ships as a Class II ebike, with pedal assist and throttle. The Abound will also operate with the throttle unplugged and removed, should you want to ride in an area that only allows Class I ebike or throttles are prohibited. Aventon ebikes are built to the IPX5-rated standard. An IPX5 rating means the bike is protected against low-pressure water jets from any direction. This provides a moderate level of water resistance, allowing you to ride in light to moderate rain or through small puddles. However, IPX5 does not mean waterproof—Aventon ebikes are not designed for full submersion. Avoid using a pressure washer or high-pressure sprayer to clean your ebike, as pressurized water can still damage components. *Max range determined using PAS 1 on flat terrain with a rider weight of 160 lb.*


E-BIKE AND OCEV CLASS SYSTEMPEDAL ASSIST (TOP SPEED)THROTTLESTREET LEGAL*AGE RESTRICTION**
CLASS 1 E-BIKE20 MPHNOYESNONE
CLASS 2 E-BIKE20 MPHYESYESNONE
CLASS 3 E-BIKE28 MPHNOYES16+
OCEV (OUT-OF-CLASS ELECTRIC VEHICLE)28+ MPHYESNO18+

*E-BIKE LAWS AND REGULATIONS CAN DIFFER BY STATE AND COUNTY, PLEASE FAMILIARIZE YOURSELF WITH THE SPECIFIC LAWS IN YOUR AREA.
**AGE RESTRICTIONS FOR E-BIKES MAY DIFFER BY LOCATION, BE SURE TO REVIEW YOUR LOCAL LAWS TO STAY COMPLIANT

What Is OCEV?

According to California Bill No. 1271 (SEC.2312.5(d)), certain vehicles are specifically excluded from being classified as electric bikes under this code. These vehicles are categorized as Out of Class Electric Vehicles (OCEVs) for the following reasons:

  1. Highspeed Potential: Vehicles with two or three wheels that are designed by the manufacturer to be modifiable for speeds greater than 20 miles per hour on motor power alone or exceeding 750 watts of power.
  2. Post Sale Modifications: Any vehicle that has been modified to attain speeds greater than 20 miles per hour on motor power alone or to exceed 750 watts of power.

These exclusions ensure that only properly classified e-bikes can be markets as such, maintaining safety standards and regulatory compliance. Riders of OCEV's should be aware of the different legal requirements and responsibilities associated with these vehicles.

Additionally, OCEVs are designed to offer performance and features beyond what traditional e-bikes can provide. Always verify the intended use and ensure you are compliant with local and state regulations when operating an OCEV.
Model: Abound LR Ebike
Weight: 88 lbs
Total Weight Limit: 440 lbs
Rider Height: 4'11" - 6'3"
Ebike Class: Class 2 Ebike
Range: Up to 60 miles
Battery Safety Certifications: Certified to UL 2271
Safety Certifications: UL and TUV Safety Certified, UL 2849
Ideal Use: Cargo & Utility
Pedal Assist: 3 Levels (with Ride Tune Customization)
Carry Capacity: Up to 2 Passengers
Water Resistance: Bike - IPX5 // Components - IPX6
Frame: Gravity Cast 6061 Single-Butted Aluminum Alloy with Internal Battery
Fork: Threaded Steerer, 15x110 spacing, 51mm travel, adjustable lockout, black stanchions
Rear Spacing: 175mm
Fork Spacing: 110mm
Frame Style: Step-Through
Front Wheel: 20in, 36H, Double Wall Aluminum, 13g, 20x110 Thru Axle, Schrader Valve
Rear Wheel: 20in, 36H, Double Wall Aluminum, 12g, Nutted Hub Drive Motor, Schrader Valve
Tires: 20x3.0 Innova IA-2131 Urban Tire, Reflective Sidewalls
Motor: Shengyi 36V 750W Hub Drive, 6 speed sensors (1188W Peak)
Motor Torque: 80Nm
Display: Aventon BC147
Battery: Removable Internal Lithium-ion, 36V, 20Ah, 733Wh, LG 21700 Cells
Battery Weight: 8.7 lbs
Controller: 36V / 33A
Throttle: Aventon LH Handlebar Mounted
Sensors: Double Sided Bottom Bracket Torque Sensor
Charger: 36V Output: 42V / 4A
Charging Time: 5 Hours (0–100%)
Lights: Front and Rear Integrated w/ Turn Signals
Front Brake: Tektro HD-E3520 Hydraulic Disc w/ EJ1 Quick Disconnect Wire, 180mm 6-Bolt Rotor
Rear Brake: Tektro HD-E3520 Hydraulic Disc w/ EJ1 Quick Disconnect Wire, 203mm 6-Bolt Rotor
Rear Derailleur: Shimano Altus RD-M310 8-Speed
Shifter: Shimano 8-Speed Trigger SL-M315-8R
Chain: 7/8 Speed, 154L
Cassette: 12–32T / 8 Speed Shimano CS HG200-8
Chainring: 52T
Crankset: 3pc, 165mm Crank Arm
Bottom Bracket: Square Taper, Sealed, Dual-Sided Torque Sensor
Pedals: 9/16" Composite Platform
Saddle: Aventon Saddle w/ Grab Handle by Selle Royal
Seatpost: 30.9mm Aventon Suspension, 350mm Length, 50mm Travel
Handlebars: BMX Style Aluminum 31.8mm, 720mm
Grips: Aventon Ergonomic Comfort Lock-On
Headset: H886HW Peilin 28.6mm * 56mm * 56mm H19.5mm, 6pcs
Included Accessories: Fenders, Rear Rack (143 lbs capacity), Frame Storage Bag

All bikes purchased through City Grounds MUST be assembled by a certified bike shop mechanic. If the bike is NOT built by a certified bike shop mechanic, any warranty will be VOID. We will request for an assembly receipt as proof of professional installation.

For all warranty claims, please contact our Warranty Team at warranty@citygrounds.com. So that we can help you in a timely manner, make sure to include the following:

  • 1. Order Number (we will confirm date of purchase and determine if the item is still under the manufacturer’s warranty time limit)
  • 2. Brief description of the claim
  • 3. Photographs
  • 4. If the item is a bike or frame, include the serial number

We evaluate all warranties case-by-case to determine the best course of action and get you serviced to the best of our ability!

Warranty does not apply to the following:

  • • Any part of a product that has been installed, altered, repaired, or misused
  • • Damage from unintended style of riding, abuse, neglect, accident, and racing
  • • Normal wear and tear of any product (including but not limited to - saddles, grips, tires, tubes, cables, brake pads, chains)
  • • Failure to provide regular maintenance of any product

Labor and shipping are the responsibility of the customer. We do not cover parts purchased and labor performed by another bike shop.

Note: Warranty is for original owner only.
