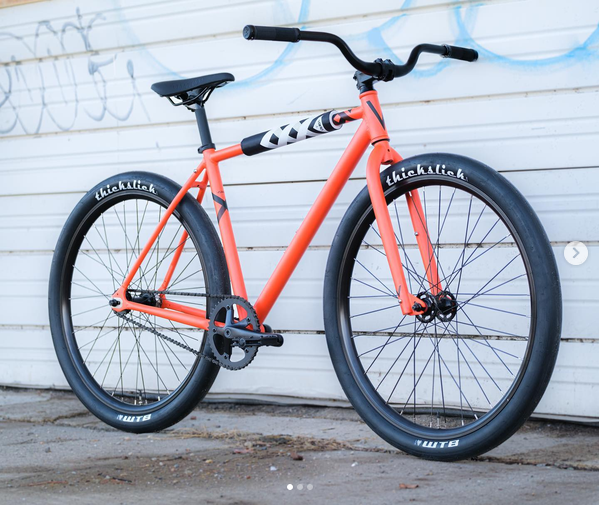

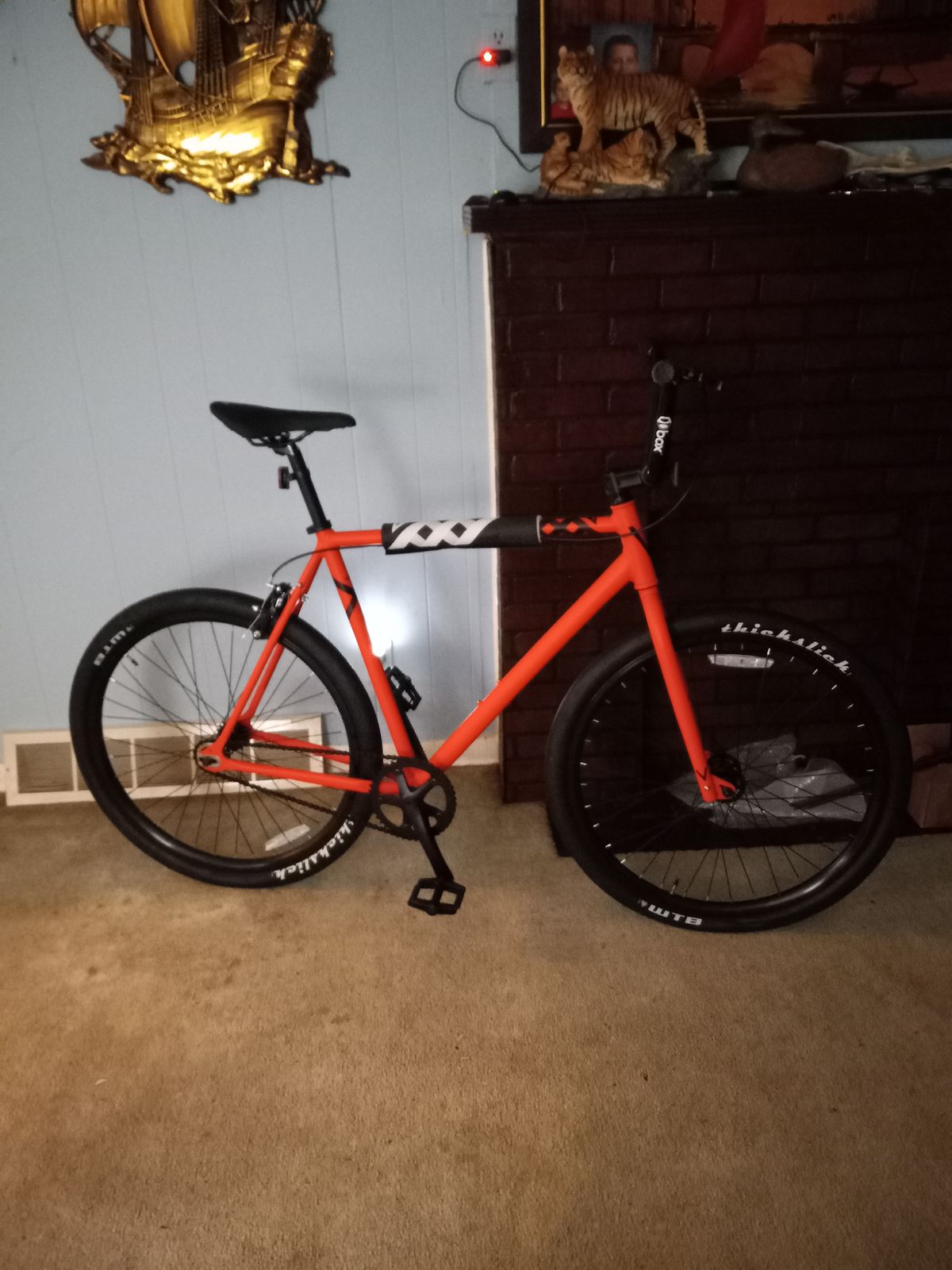

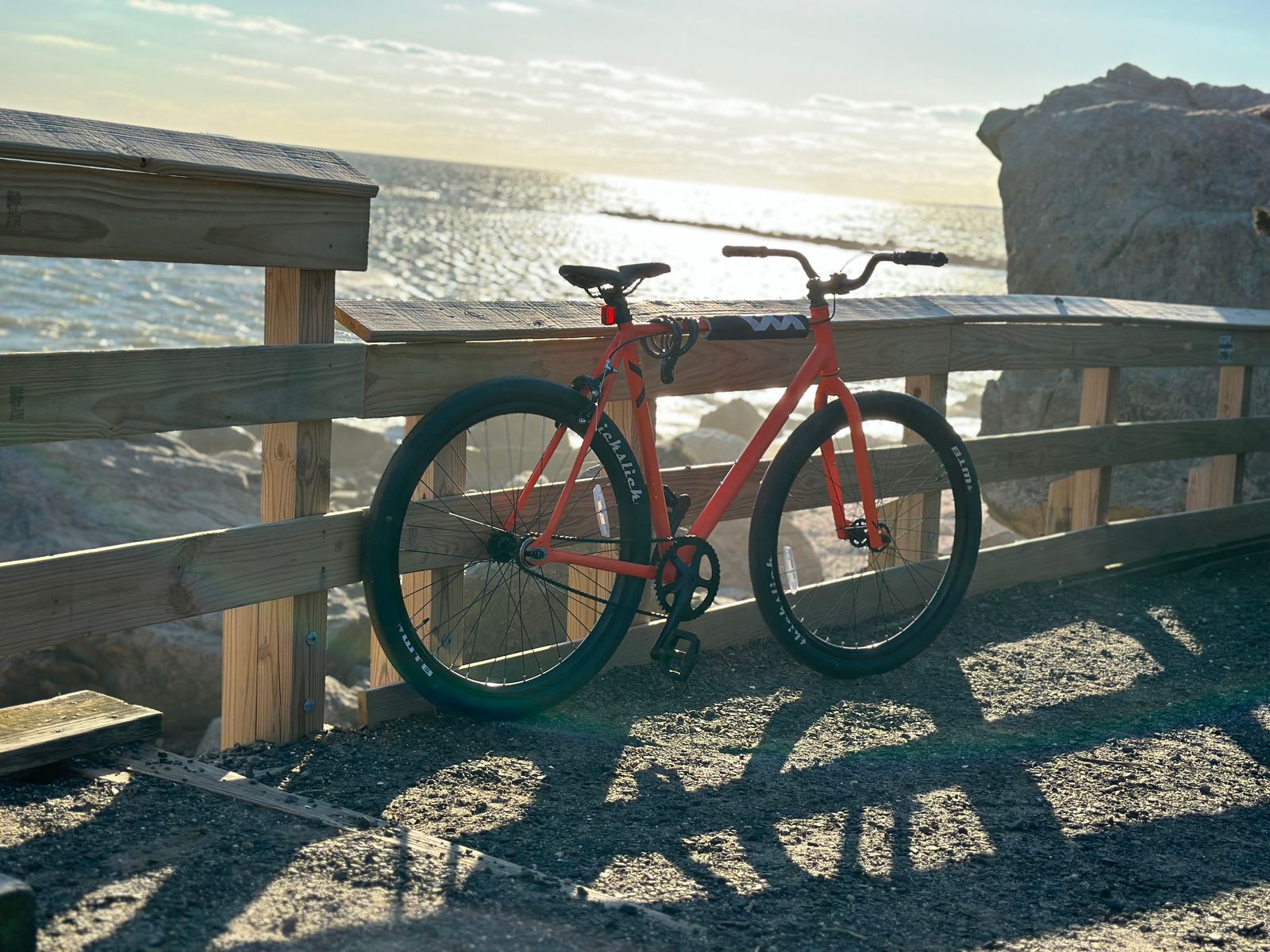

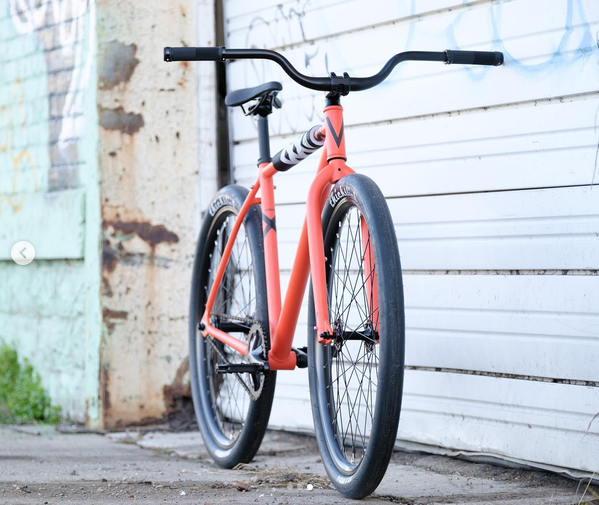

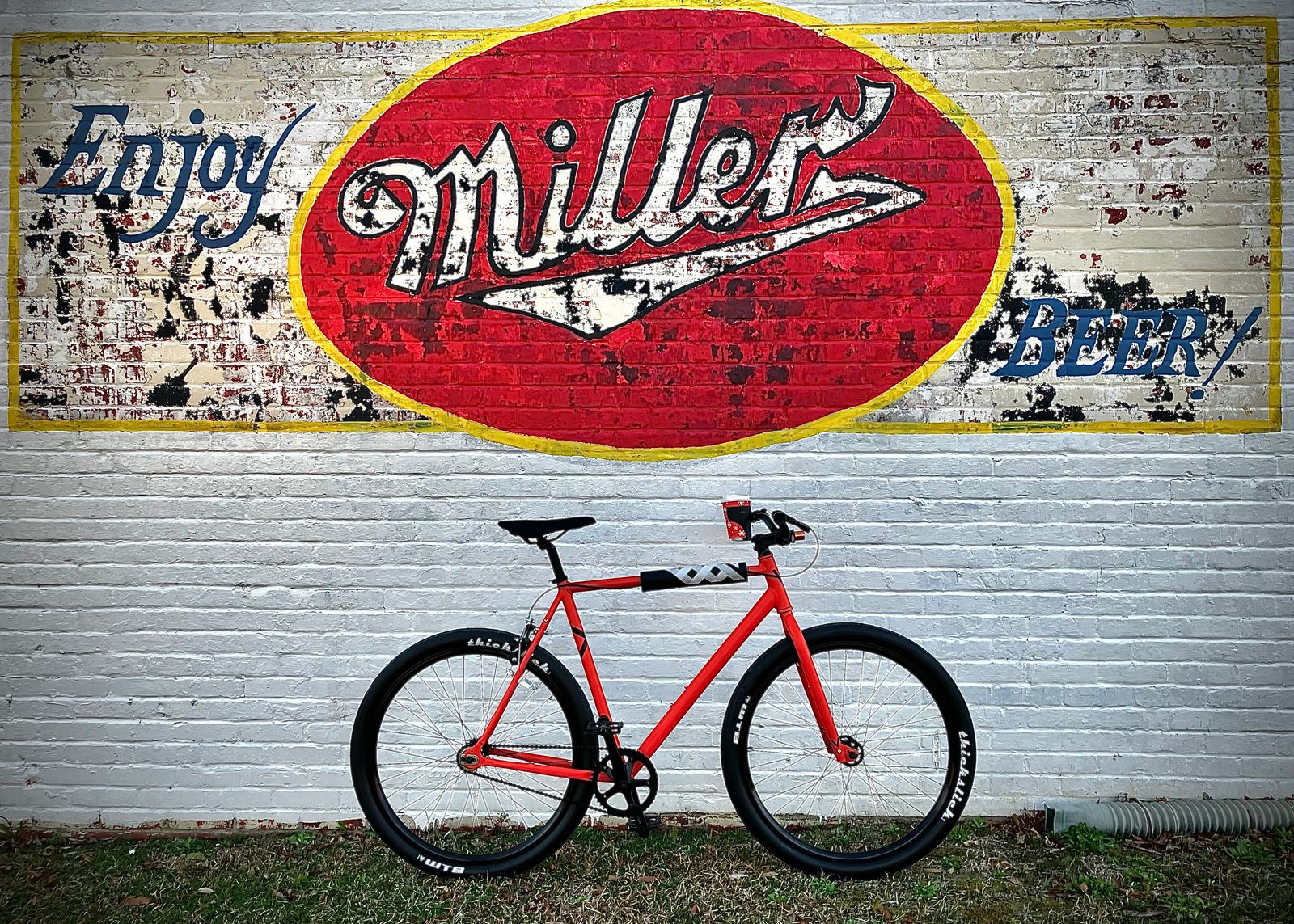

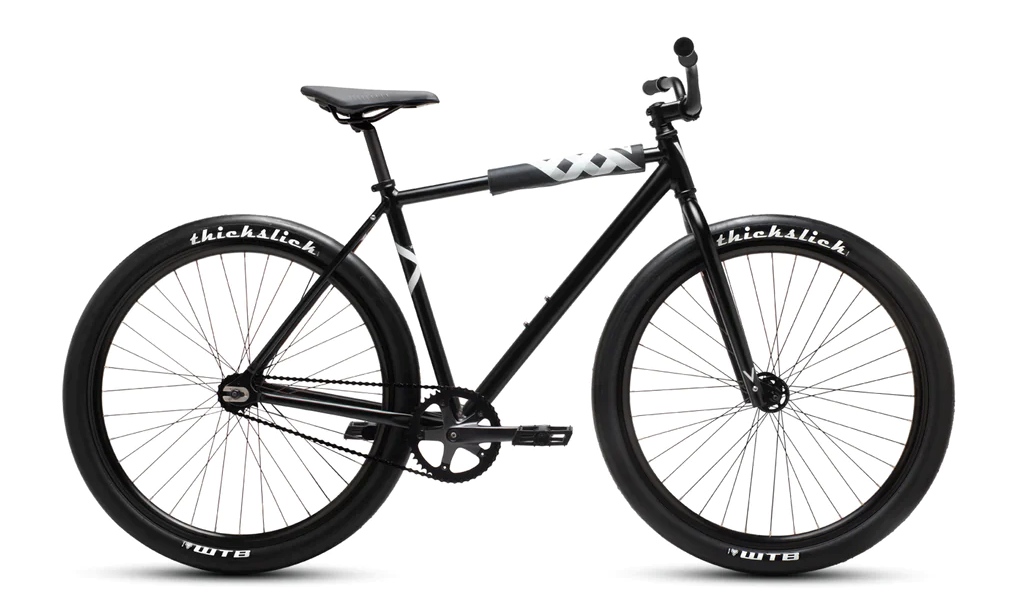

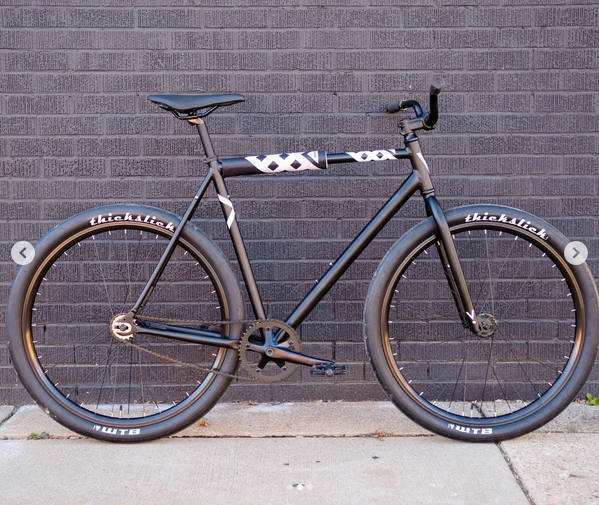

Verde Vario 650B Fixed Gear Bike

Frame Spec

Frame: 6061 aluminum frame w/ standard head tube, bottle, and rack mounts
Top Tube Length: 21.5” (effective 22.25”) or 22.75” (effective 23.2”)
Chain Stay Length: 16.6” centered / 15.9” slammed
Head Tube Angle: 71º
Seat Tube Angle: 73.5º
Bottom Bracket Height: 10.9”

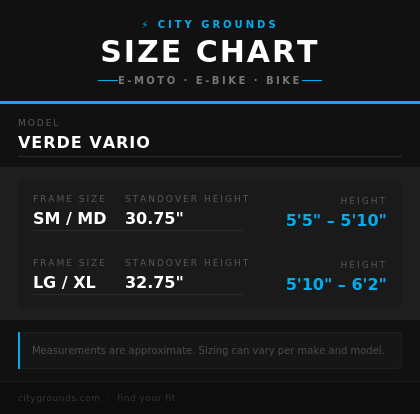

Standover Height: 30.75” or 32.75”

PARTS SPEC

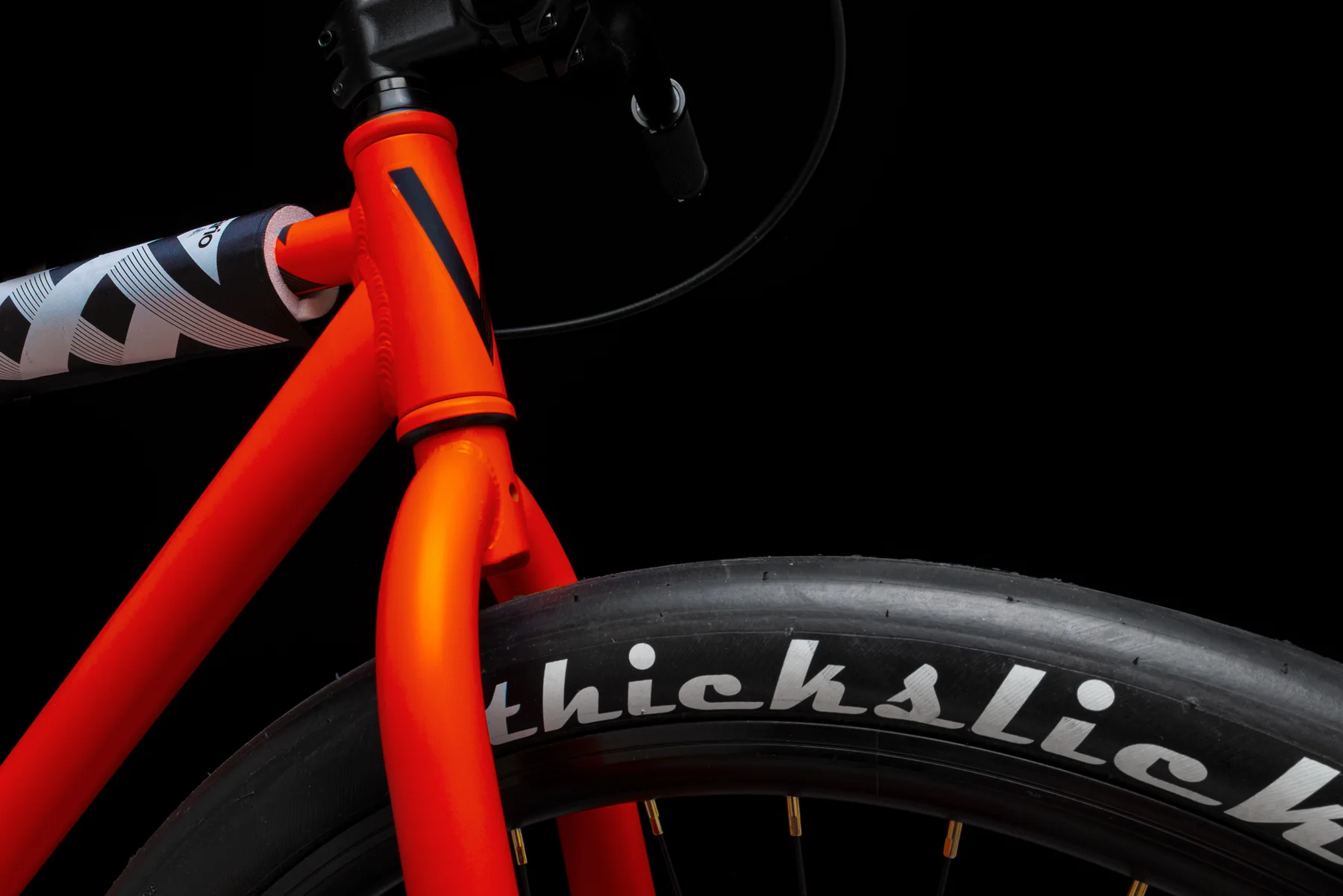

Fork: 100% chromoly w/ rack mounts

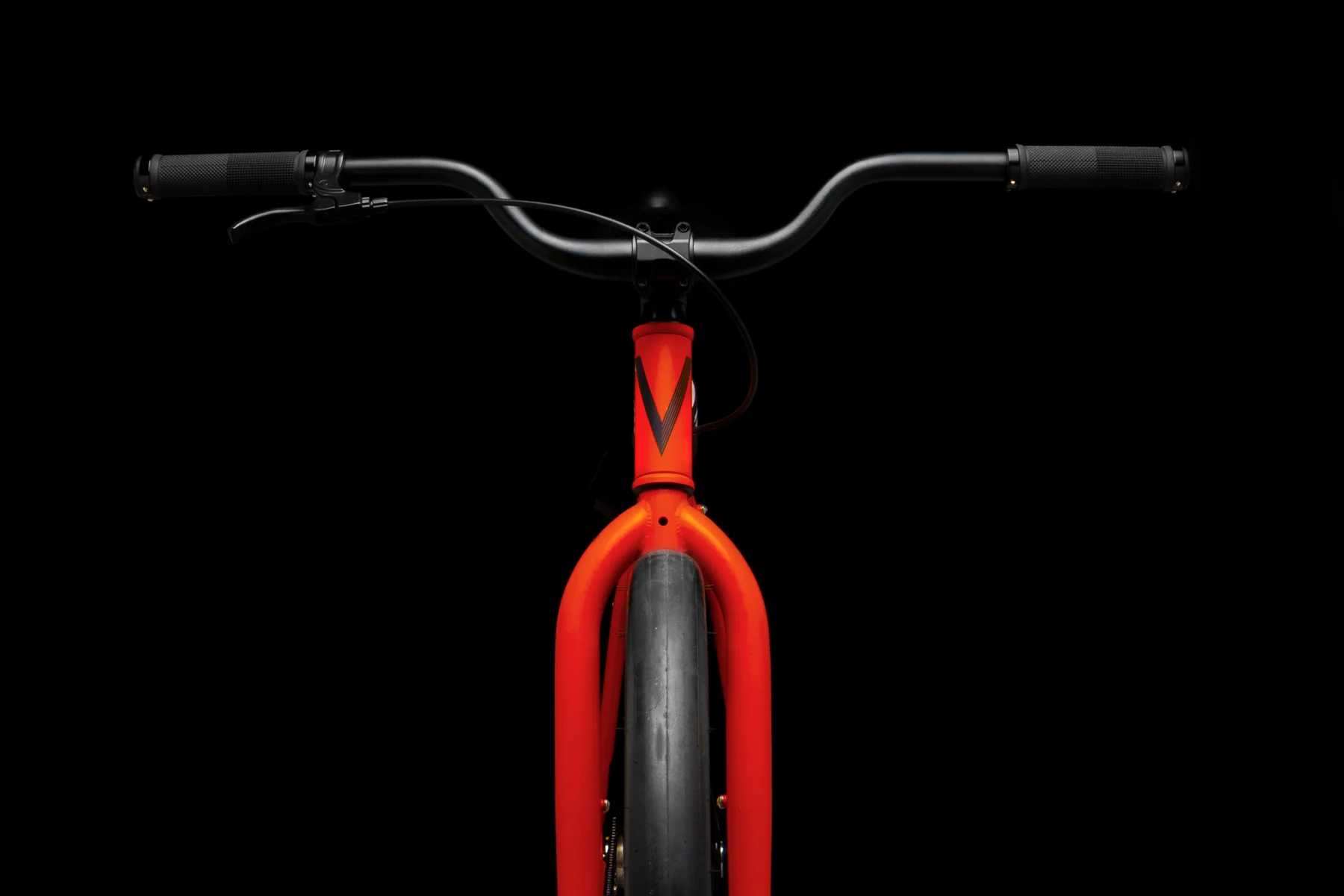

Bars: 6061 aluminum, 3” rise, 29.5” wide, 31.8mm clamping area
Stem: Forged alloy front load, 65mm reach
Headset: Standard 1-1/8”
Brake: Rear caliper brake (front brake pictured, but not included in USA)
Lever: Alloy, 2-finger design, hinged

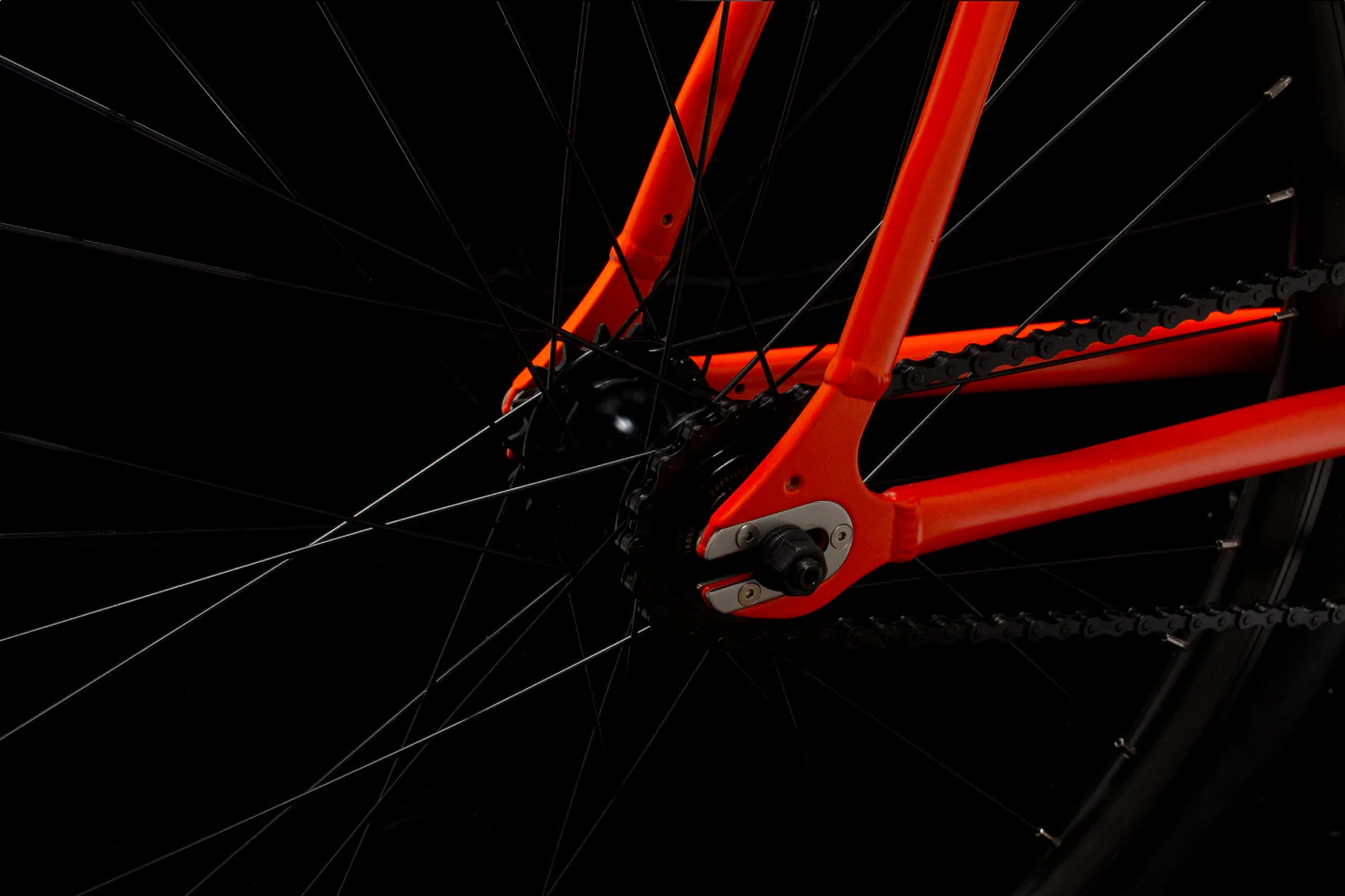

Rear Hub: Alloy, fully sealed, 10mm (3/8”) axle, flip flop design with 17 tooth cog and 18 tooth freewheel
Front Hub: Alloy, fully sealed, 10mm (3/8”) axle
Sprocket: Alloy 44-tooth, 5-bolt ring

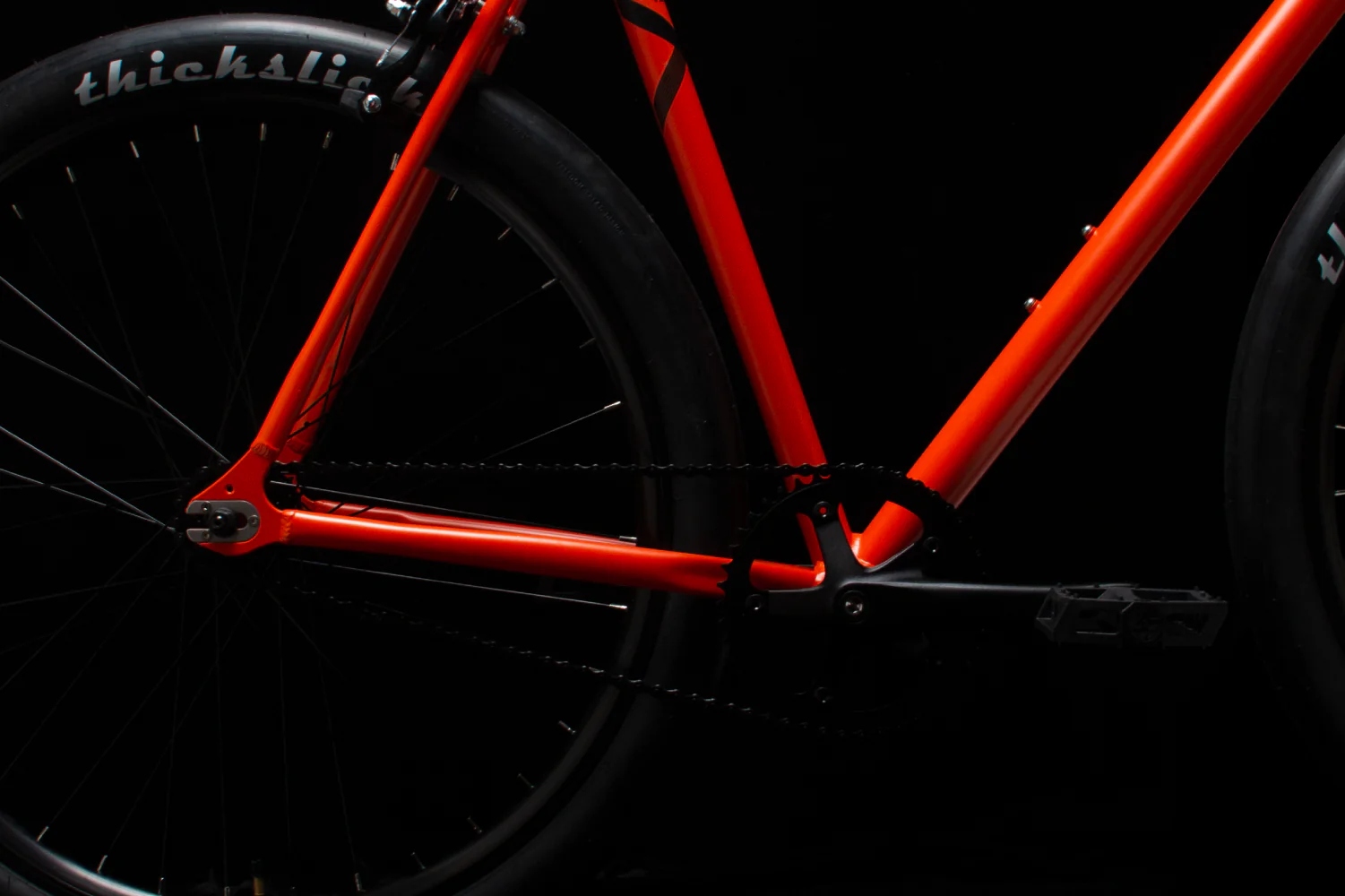

Cranks: Forged alloy 3-piece, 170mm, 130 BCD
BB: Sealed Euro
Chain: KMC 410, black
Pedals: Nylon composite platform
Front Rim: 6061 aluminum, double wall, 36-hole
Rear Rim: 6061 aluminum, double wall, 36-hole
Spokes: Black w/ silver nipples
Front Tire: WTB Thick Slick
Rear Tire: WTB Thick Slick
Seat: Verde Race railed
Seat Post: Alloy micro-adjust, alloy, 27.2mm diameter, 350mm length
Seat Clamp: Alloy

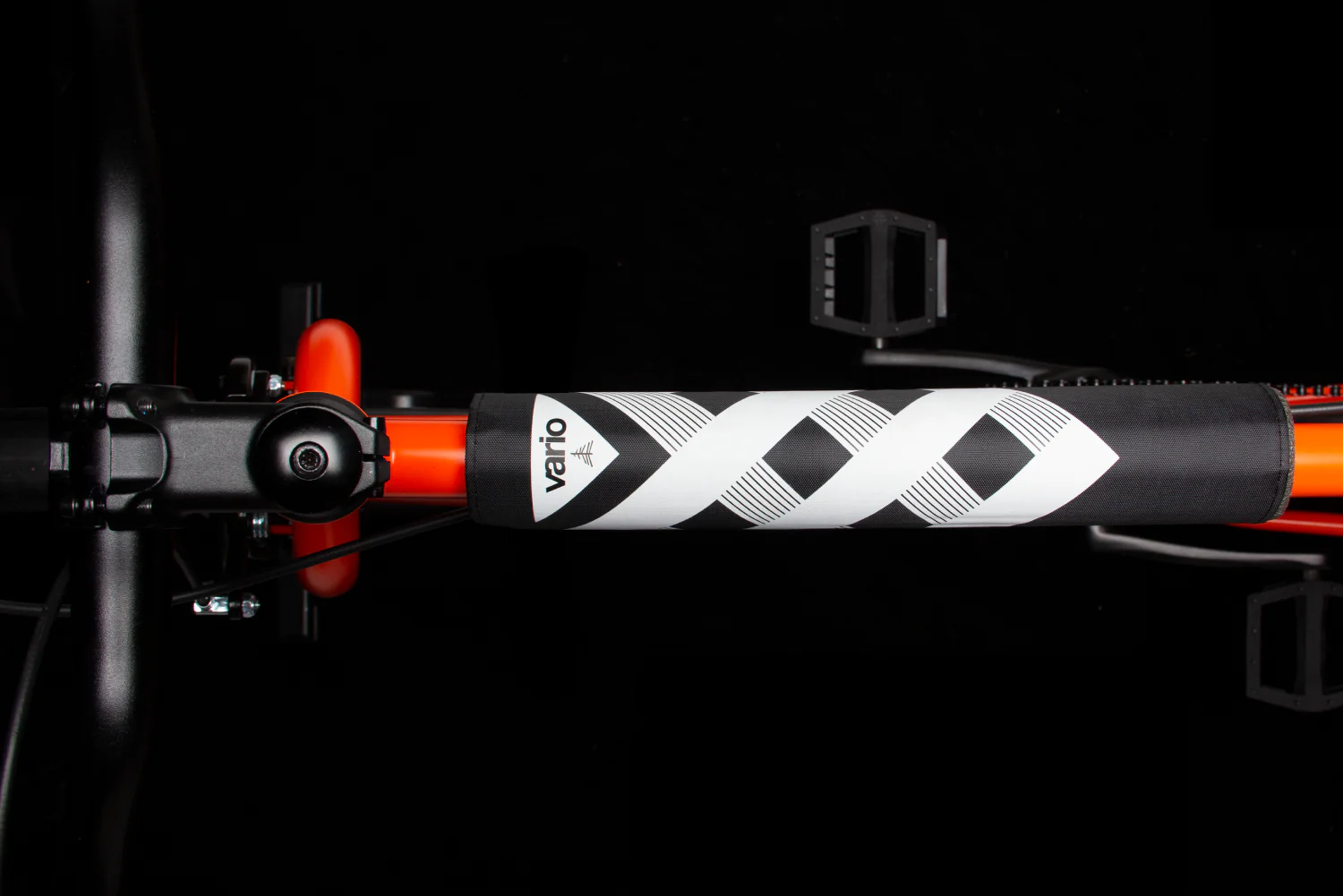

Extra: Frame pad included
Grips: Lock-on grips w/ press-in Verde bar ends
Weight: 23.8 lbs / 24.4 lbs

All bikes purchased through City Grounds MUST be assembled by a certified bike shop mechanic. If the bike is NOT built by a certified bike shop mechanic, any warranty will be VOID. We will request for an assembly receipt as proof of professional installation.

For all warranty claims, please contact our Warranty Team at warranty@citygrounds.com. So that we can help you in a timely manner, make sure to include the following:

• 1. Order Number (we will confirm date of purchase and determine if the item is still under the manufacturer’s warranty time limit)
• 2. Brief description of the claim
• 3. Photographs
• 4. If the item is a bike or frame, include the serial number

We evaluate all warranties case-by-case to determine the best course of action and get you serviced to the best of our ability!

Warranty does not apply to the following:

• • Any part of a product that has been installed, altered, repaired, or misused
• • Damage from unintended style of riding, abuse, neglect, accident, and racing
• • Normal wear and tear of any product (including but not limited to - saddles, grips, tires, tubes, cables, brake pads, chains)
• • Failure to provide regular maintenance of any product

Labor and shipping are the responsibility of the customer. We do not cover parts purchased and labor performed by another bike shop.

Note: Warranty is for original owner only.
