Throne

Throne SRPNT X3 E-Moto Bike

Black Strike
Black Strike
Graphite
Graphite
Midnight Blue
Midnight Blue

Throne

Throne SRPNT X3 E-Moto Bike

$4,899.00

Color:

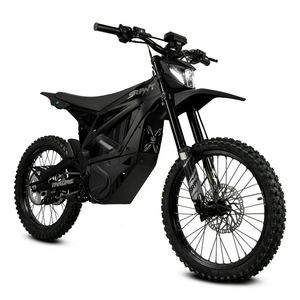

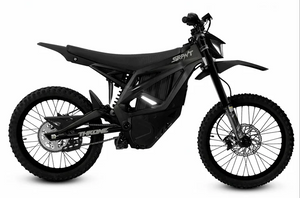

Black Strike

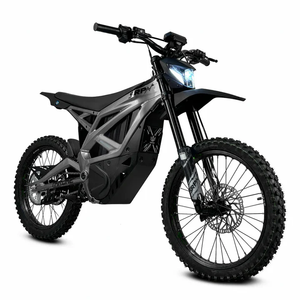

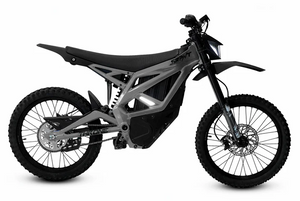

Graphite

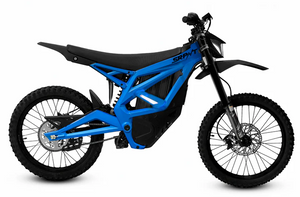

Midnight Blue

1-Year Manufacturer's Warranty

May vary per manufacturer.

CG REWARDS MEMBERS earn 4899 Points with Purchase of This Product!   Learn More
  • We're thrilled to unveil the culmination of two years of dedicated research, design, and hard work!!: introducing the all-new X3 - e-moto powered by Throne Cycles! Experience the electrifying power of 72 volts and 13,000 watts of pure power! A custom alloy frame crafted under 3000 lbs. of pressure, this bike promises an unparalleled adventure.

    Safety is always paramount, which is why it has two integrated kill switches and strategically placed lights for enhanced visibility, ensuring your rides are as safe as they are thrilling. Whether you're navigating rugged terrain or enjoying off-road trails, the X3 - e-moto delivers unmatched performance and excitement. New Industry levels!

    Embrace the thrill and be among the first to get your own. However, please note that while this bike offers unparalleled excitement, it's important to remember that it's not street-legal. Prepare to elevate your off-road experience like never before with the X3 - e-moto.

  • Motor Type:PMSM (Permanent Magnet Synchronous Motor)
    Mounting Position:Mid
    Motor Weight / Diameter:9.55 kg / 155 mm
    Motor Axial Length:130 mm
    Motor Peak Efficiency:98%
    Cooling Method:Air-Cooled
    Controller Type:FOC (Field-Oriented Control)
    Controller Dimensions:160 x 142 x 79 mm
    Controller Peak Efficiency:98.5%
    Power Modes:Eco, High, Sport
    Rated Voltage:72V DC
    Rated / Peak Torque:95 Nm / 115 Nm
    Torque @ 1000RPM:460 Nm (Motor Shaft)
    Rated Rotation Speed:5400 RPM
    Efficiency Range (≥80%):3 Nm – 45 Nm
    Gear Ratio:13:51
    Transmission:Motorcycle Chain & 428 Drive Chain
    Drive Belt:German Continental Brand, 8M CXA
    Battery:72V 40Ah Lithium with 176 LG Cells
    Battery Life:500 Cycles (600 Uses)
    Charger:9A / 3.5 Hour Charge Time
    Display:Integrated Battery LCD & TFT Speedometer
    USB Connection:Type-C
    Lighting:LED Headlight & Rear Light
    Chassis:6061 T4&T6 Aluminum (Forged, Baked Paint)
    Front Suspension:Inverted Fork, 200mm Travel
    Rear Suspension:KKE Suspension Link System
    Wheels:Front: 1.4-19, Rear: 1.6-19 Alloy Hubs
    Ground Clearance:270 mm
    Wheelbase:1250 mm
    Seat Height:85 cm
    Vehicle Dimensions:1880 x 805 x 1130 mm
    Top Speed:90 km/h (56 MPH)
    Net Weight:73 kg (161 lbs)
    Rear Sprocket:51T
    Side Stand:Yes, with Kill Switch
    Carry Capacity:320 lbs
  • All bikes purchased through City Grounds MUST be assembled by a certified bike shop mechanic. If the bike is NOT built by a certified bike shop mechanic, any warranty will be VOID. We will request for an assembly receipt as proof of professional installation.

    For all warranty claims, please contact our Warranty Team at warranty@citygrounds.com. So that we can help you in a timely manner, make sure to include the following:

    • 1. Order Number (we will confirm date of purchase and determine if the item is still under the manufacturer’s warranty time limit)
    • 2. Brief description of the claim
    • 3. Photographs
    • 4. If the item is a bike or frame, include the serial number

    We evaluate all warranties case-by-case to determine the best course of action and get you serviced to the best of our ability!

    Warranty does not apply to the following:

    • • Any part of a product that has been installed, altered, repaired, or misused
    • • Damage from unintended style of riding, abuse, neglect, accident, and racing
    • • Normal wear and tear of any product (including but not limited to - saddles, grips, tires, tubes, cables, brake pads, chains)
    • • Failure to provide regular maintenance of any product

    Labor and shipping are the responsibility of the customer. We do not cover parts purchased and labor performed by another bike shop.

    Note: Warranty is for original owner only.
