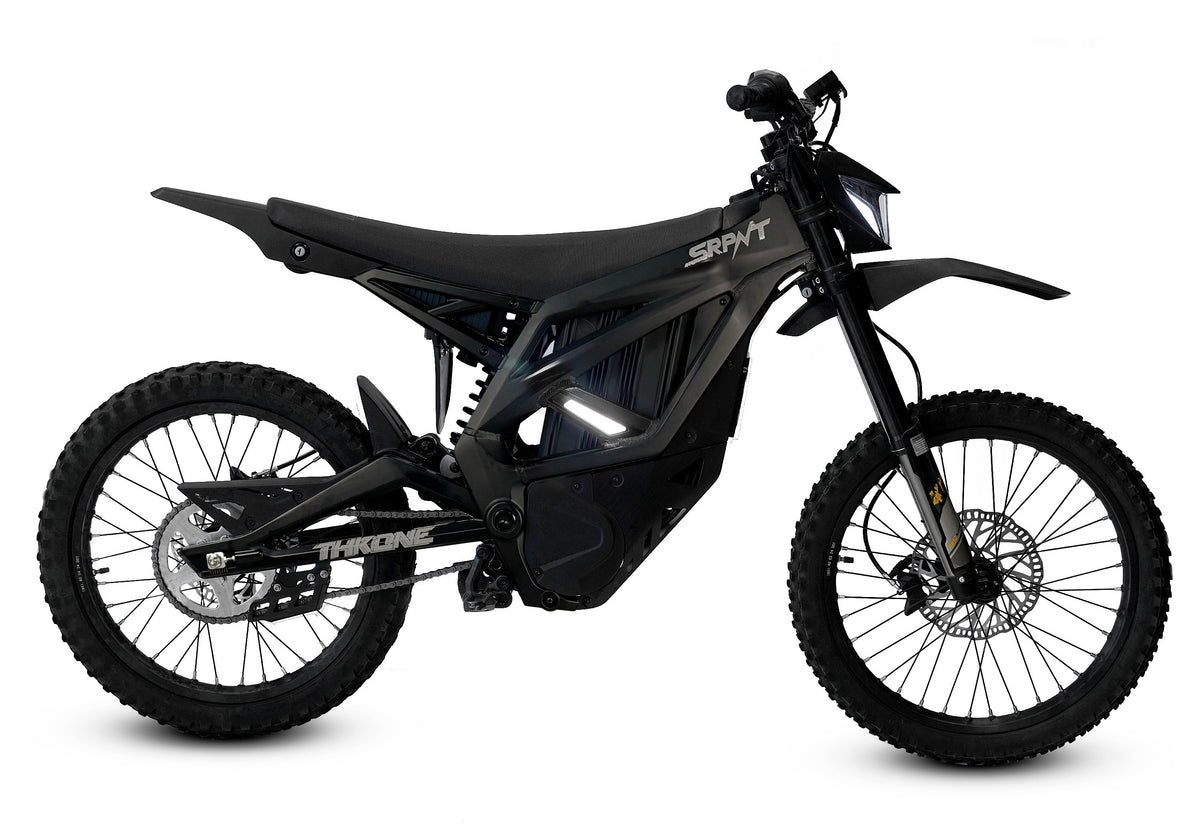

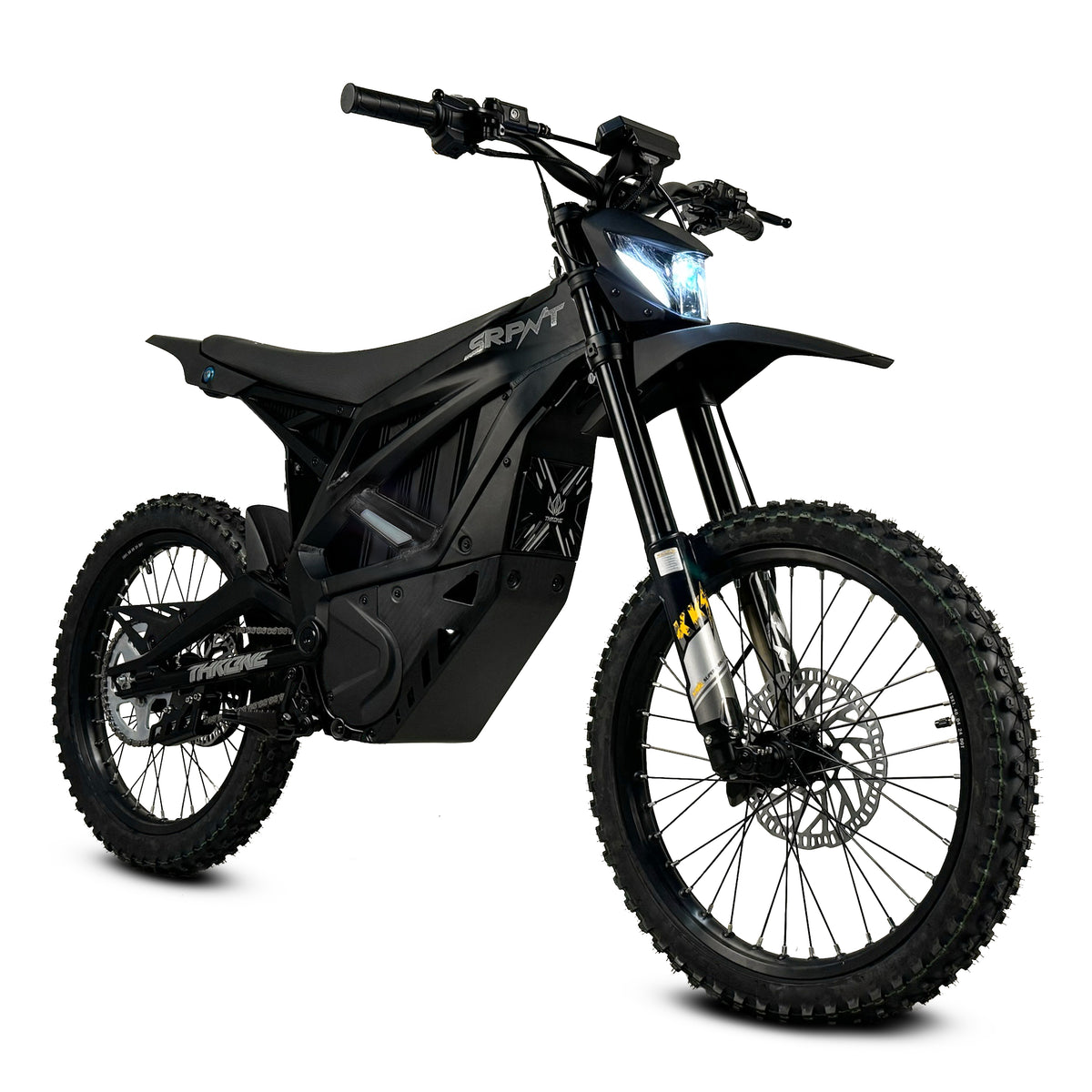

Throne Cycles is thrilled to unveil the culmination of two years of dedicated research, design, and hard work!!: introducing the all-new SRPNT e-DIRT BIKE powered by Throne Cycles! Experience the electrifying power of 72 volts and 10,000 watts of pure power! With a custom alloy frame crafted under 3000 lbs. of pressure, this bike promises an unparalleled adventure.
Safety is always paramount, which is why it has two integrated kill switches and strategically placed lights for enhanced visibility, ensuring your rides are as safe as they are thrilling. Whether you're navigating rugged terrain or enjoying off-road trails, the SRPNT e-DIRT BIKE delivers unmatched performance and excitement. New Industry levels!
Embrace the thrill and be among the first to pre-order* your own. However, please note that while this bike offers unparalleled excitement, it's important to remember that it's not street-legal. Prepare to elevate your off-road experience like never before with the SRPNT e-DIRT BIKE by Throne.
#throneSRPNT #thronepower
-
MOTOR
Motor Type: PMSM Mounting Position: Mid Weight / Motor External Diameter: 9.55kg / 155mm Motor Axial Length: 130mm Peak Efficiency: 94% Cooling Method: Air-Cooled CONTROLLER
Controller Type: FOC Dimensions: 160mm x 142mm x 79mm Peak Efficiency: 98.50% Power Modes: Eco, High, and Sport MOTOR POWER SYSTEM
Rated Voltage: 72V (DC) Rated Torque / Peak Torque: 95115Nm Motor Shaft Output Torque @ 1000RPM: 49Nm Rated Rotation Speed: 5400rpm Peak Efficiency: 94% Range of Efficiency (≥80): 3Nm - 45Nm TRANSMISSION
Gear Ratio: 13:51 Transmission: Primary Belt & 420 Drive Chain Belt Brand & Model: German Continental Brand, 8M CXA ELECTRICAL COMPONENTS
Horn: CQC Battery: 72V 40AH Lithium Battery with 176 LG Cells Battery Life Time: 500 Cycles Battery Charge Level: Integrated Battery LCD Display Charger: 9A Charging Time: 3.5 Hours USB Connection: Type C Speedometer: TFT LED Headlight & Rear Light: Yes FRAME DETAILS
Chassis - Swing Arm Material: No.6061 T4&T6 Aluminum Chassis Construction Method: Forged by 3000 Tons of Pressure Chassis Surface & Color Processing: Baked Paint Front Suspension: Inverted Suspension Fork with 200mm Travel Rear Shock Absorber: KKE Suspension Link System Wheel Type & Size: Front/Rear :1.4-19 , 1.6-19 Alloy Hubs DIMENSIONS
Ground Clearance: 270mm Wheelbase: 1250mm Seat Height: 85cm Vehicle Dimensions: 1880mmX805x1130mm DRIVE
Top Speed: 90km/h Net Weight 73kg Rear Sprocket 51T Side Stand Yes with Kill Switch Battery Usage 600 Uses Carry Capacity 280lb -
All bikes purchased through City Grounds MUST be assembled by a certified bike shop mechanic. If the bike is NOT built by a certified bike shop mechanic, any warranty will be VOID. We will request for an assembly receipt as proof of professional installation.
For all warranty claims, please contact our Warranty Team at warranty@citygrounds.com. So that we can help you in a timely manner, make sure to include the following:
- 1. Order Number (we will confirm date of purchase and determine if the item is still under the manufacturer’s warranty time limit)
- 2. Brief description of the claim
- 3. Photographs
- 4. If the item is a bike or frame, include the serial number
We evaluate all warranties case-by-case to determine the best course of action and get you serviced to the best of our ability!
Warranty does not apply to the following:
- • Any part of a product that has been installed, altered, repaired, or misused
- • Damage from unintended style of riding, abuse, neglect, accident, and racing
- • Normal wear and tear of any product (including but not limited to - saddles, grips, tires, tubes, cables, brake pads, chains)
- • Failure to provide regular maintenance of any product
Labor and shipping are the responsibility of the customer. We do not cover parts purchased and labor performed by another bike shop.
Note: Warranty is for original owner only.
