Matte Black

Crew Bike Co Dart20-S Electric Bike

Matte Black
$1,599.00
Regular price  Sale price  $1,599.00
Skip to product information
Matte Black

Speed

20 Mph

Range

40 Miles*

Class

Class 2

Motor

750W Hub Motor

Battery

48V 14Ah Lithium-ion

Fork

Front Suspension Fork, 80mm Travel

Crew Bike Co

Crew Bike Co Dart20-S Electric Bike

Class-2 Class-2 Compliant E-Bike
Rated 4.5 out of 5
Based on 15 reviews
$1,599.00
Unlock $50 off Join Now

$1,549.00 member price with free CG Rewards membership

Color:Matte Black

Speed

20 Mph

Range

40 Miles*

Class

Class 2

Motor

750W Hub Motor

Battery

48V 14Ah Lithium-ion

Fork

Front Suspension Fork, 80mm Travel

Crew Dart20-S

The Crew Dart20-S takes the compact, bike-life-ready Dart20 platform and levels it up with more capability, comfort, and range. An 80mm travel suspension fork smooths out rough streets and adds control when the riding gets technical, while the integrated front plate gives the bike an aggressive, moto-inspired look.

A punchy 750W rear hub motor is paired with an upgraded 48V / 14Ah battery for longer rides and extended sessions. Hydraulic disc brakes provide confident stopping power, while fat Crew Blockster Tires, 20x 4.0" Front and 20 x 4.5" Rear, deliver plenty of grip and cushion. Finished with a powerful 48V headlight, the Dart20-S is built for cruising, wheelies, ride-outs, and everything in between.

Recommended for riders 4'10"–5'10".

CLASS-2 E-Bike Regulations

According to California Vehicle Code Section 312.5, a Class 2 electric bicycle is a low-speed throttle-assisted bicycle equipped with a motor that may propel the bicycle without pedaling but is not capable of providing motor assistance once the bicycle reaches 20 miles per hour. To qualify as an electric bicycle under California law, the motor must also have a maximum continuous rated power of no more than 750 watts.

This vehicle is categorized as a Class 2 electric bicycle for the following reasons:

  1. Throttle-Assisted Operation: The bicycle is equipped with a throttle that can propel the bicycle without the rider pedaling.
  2. 20 MPH Motor-Assistance Limit: Motor assistance is designed to stop providing propulsion once the bicycle reaches 20 miles per hour.
  3. 750-Watt Power Limit: The bicycle is equipped with an electric motor rated at no more than 750 watts.

These features allow the vehicle to be classified as a Class 2 electric bicycle rather than an off-highway electric vehicle, motorized bicycle, moped, or motorcycle, provided the bicycle remains in its original, compliant configuration.

Class 2 e-bikes are generally permitted anywhere conventional bicycles are allowed unless otherwise restricted by a local authority, property owner, park, trail system, or posted regulation. Riders are responsible for reviewing and following all applicable state and local laws before operating the bicycle.

Disclaimer: Some vehicles featured in this content are designed for off-road use only and may not be street legal in certain jurisdictions. Others may be eligible for
on-road use if properly registered and operated in accordance with local, state, and federal laws. It is the buyer’s responsibility to ensure compliance before use on public roads. All riding shown in our promotional materials is performed by experienced riders and professional stunt performers operating in controlled environments. The aggressive riding, stunt maneuvers, and high-speed sequences depicted are extremely dangerous and should never be attempted by untrained individuals or in uncontrolled settings. Always wear proper safety gear, including DOT-approved helmets and protective clothing. Misuse of any vehicle can result in serious injury or death. City Grounds and its affiliated brands assume no responsibility for injury, loss, or legal consequences arising from the misuse or improper operation of any products purchased through our platforms. By engaging with our content and products, you acknowledge and accept these risks. Ride responsibly. Respect your machine, your environment, and others around you.

*E-BIKE LAWS AND REGULATIONS CAN DIFFER BY STATE AND COUNTY, PLEASE FAMILIARIZE YOURSELF WITH THE SPECIFIC LAWS IN YOUR AREA.
**AGE RESTRICTIONS FOR E-BIKES MAY DIFFER BY LOCATION, BE SURE TO REVIEW YOUR LOCAL LAWS TO STAY COMPLIANT

Frame:Chromoly 20” Loop Tail
Fork:Front Suspension Fork, 80mm Travel
Crank:Crew Chromoly 155mm, 36t Chainring
Headset:1-1/8" Sealed Bearings
Wheelset:20" Double Wall Rim, Sealed Bearing Hub
Chain:KMC 1/8" Heavy Duty
Freewheel:Chromoly 16t
Seat:Crew Bench Style Seat
Stem:BMX 22.2mm Clamp, 50mm
Handlebars:Crew MK2-Narrow 2-PC Chromoly, 6.8” Rise, 680mm Width, 22.2mm Clamp
Brakes:Hydraulic Disc Brakes, F: 180mm Rotor / R: 160mm Rotor
Tires:Front: Crew Blockster  20” × 4.0”  Rear: Crew Blockster 20" x 4.5"
Battery:48V 14Ah Lithium-ion
Motor:750W Hub Motor
Display:48V LCD Display
Throttle Style:Thumb Throttle
Controller:48V 750W, 3 Modes – Eco, Sport, Race
Sensor:Pedal Cadence Sensor
Range:Up to 20 miles (throttle). Up to 40 miles depending on PAS mode and terrain
Speed:20 MPH
Charger:48V 2A Charger
Lights:48v Headlight, Rear LED Taillight
Weight:61 lbs
Rider Height:4'10" - 5'10"
Weight Capacity:275 lbs
Handbook:Dart20 Handbook

All bikes purchased through City Grounds MUST be assembled by a certified bike shop mechanic. If the bike is NOT built by a certified bike shop mechanic, any warranty will be VOID. We will request for an assembly receipt as proof of professional installation.

For all warranty claims, please contact our Warranty Team at warranty@citygrounds.com. So that we can help you in a timely manner, make sure to include the following:

  • 1. Order Number (we will confirm date of purchase and determine if the item is still under the manufacturer’s warranty time limit)
  • 2. Brief description of the claim
  • 3. Photographs
  • 4. If the item is a bike or frame, include the serial number

We evaluate all warranties case-by-case to determine the best course of action and get you serviced to the best of our ability!

Warranty does not apply to the following:

  • • Any part of a product that has been installed, altered, repaired, or misused
  • • Damage from unintended style of riding, abuse, neglect, accident, and racing
  • • Normal wear and tear of any product (including but not limited to - saddles, grips, tires, tubes, cables, brake pads, chains)
  • • Failure to provide regular maintenance of any product

Labor and shipping are the responsibility of the customer. We do not cover parts purchased and labor performed by another bike shop.

Note: Warranty is for original owner only.

See It In Action

Video Reviews

  • Crew Bike Co. Dart20-S Electric Bike | Overview & Features

    Crew Bike Co.

  • Crew Bike Co. Dart20-S Electric Bike | Pan Shot

    Crew Bike Co.

  • @JaymeBrapp gives us the full rundown on the new Crew Dart20-S ⚡

    @crewbikeco

Built Different

Highlights

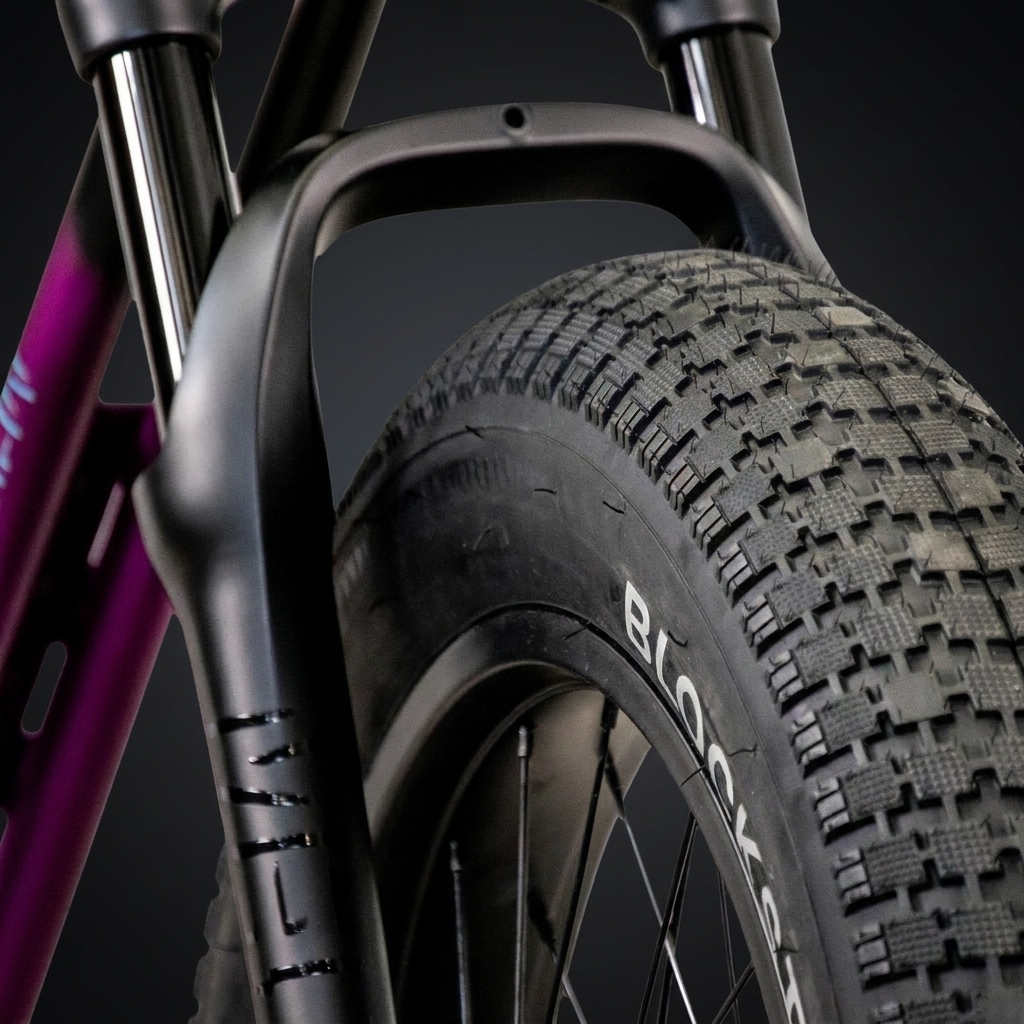

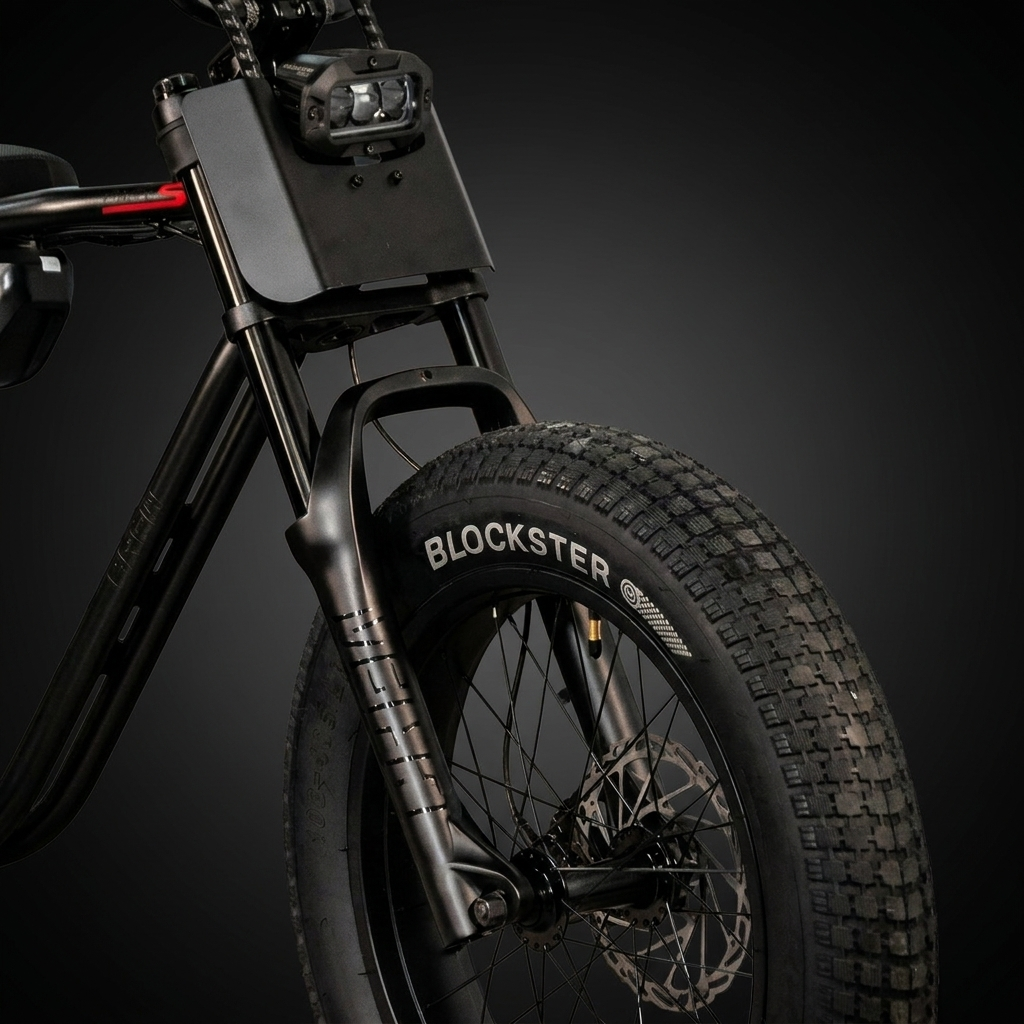

  • Front Suspension Fork

    Front Suspension Fork

    Dart20 Air-34 suspension fork with 80mm travel front suspension fork to soak up broken pavement, curb drops, and whatever else the ride throws at it.

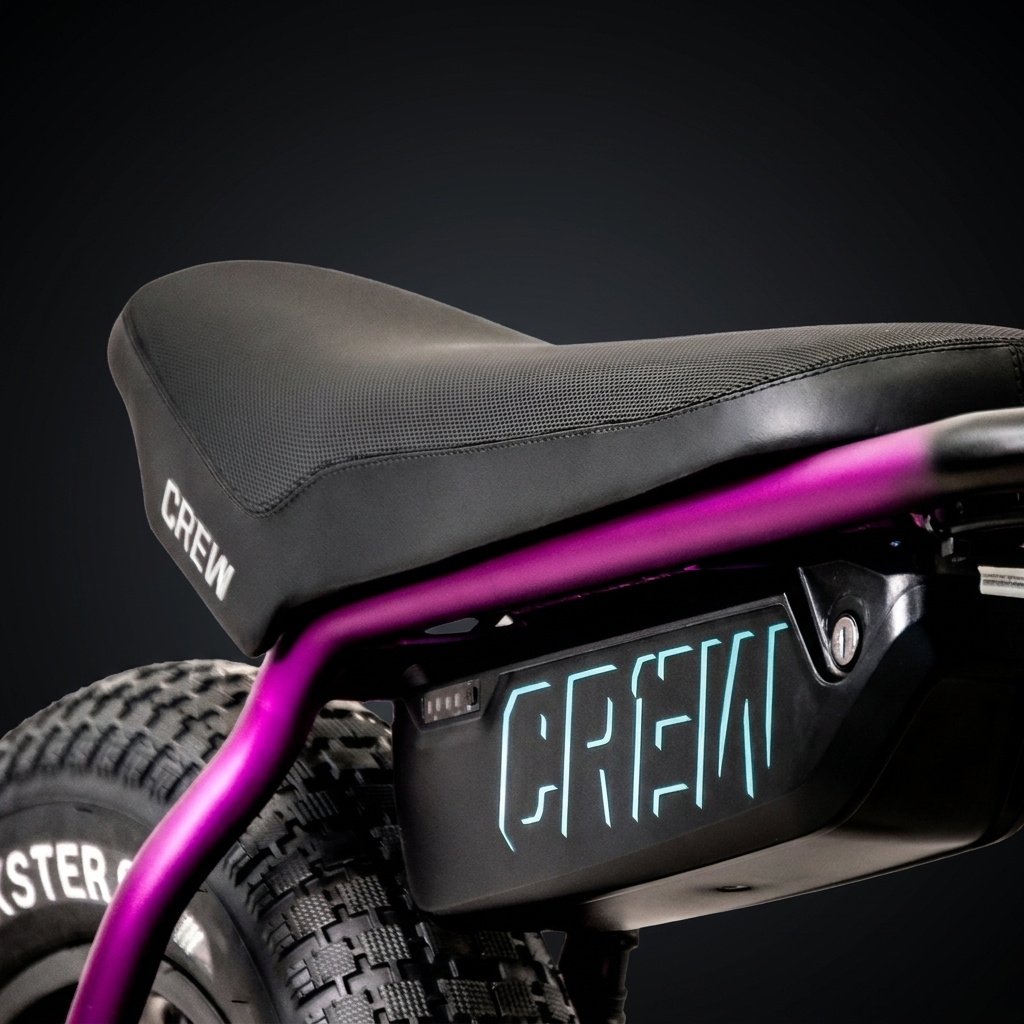

  • Upgraded Battery Capacity

    Upgraded Battery Capacity

    Upgraded 48V 14Ah Lithium-ion to increase range and keep you riding longer than ever before. Get up to 40 miles depending on PAS mode and terrain.

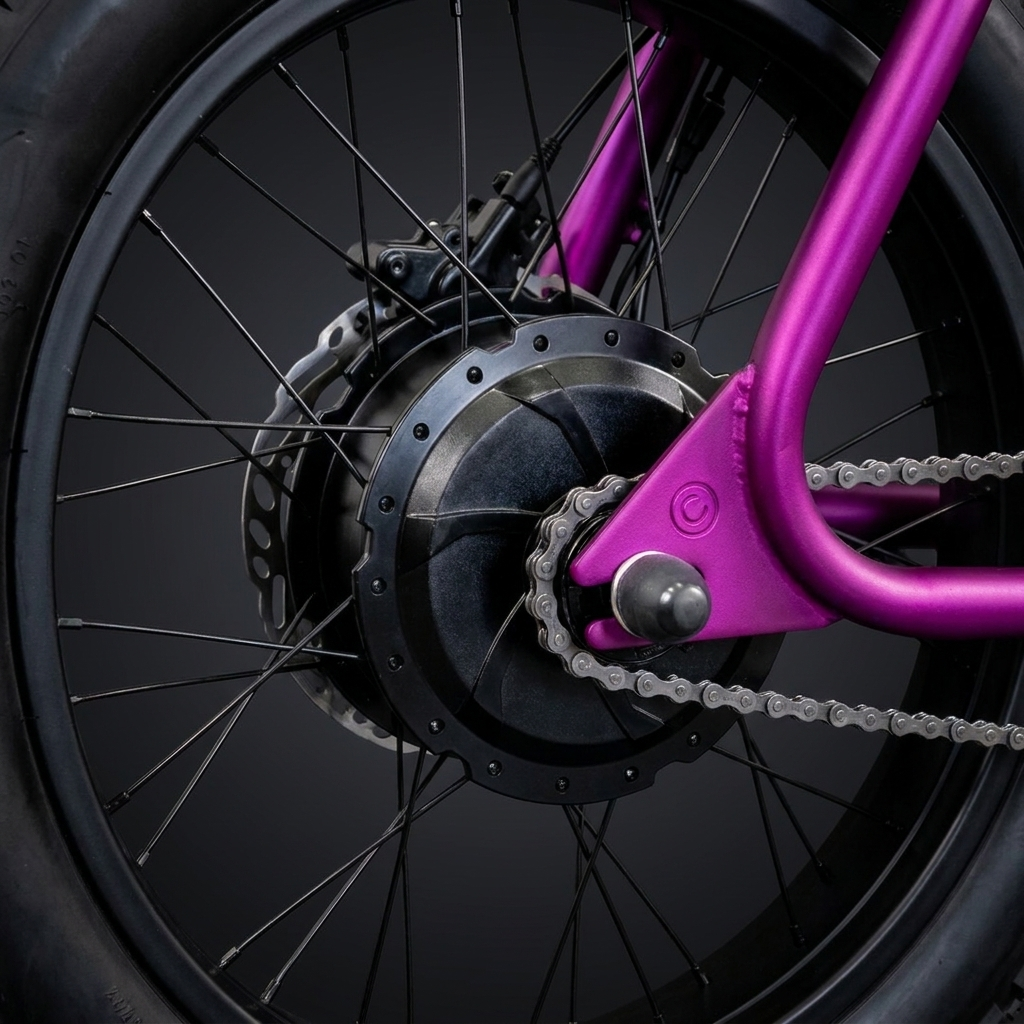

  • 750W Hub Motor

    750W Hub Motor

    750W rear hub motor provides plenty of torque to get you up to speed fast.

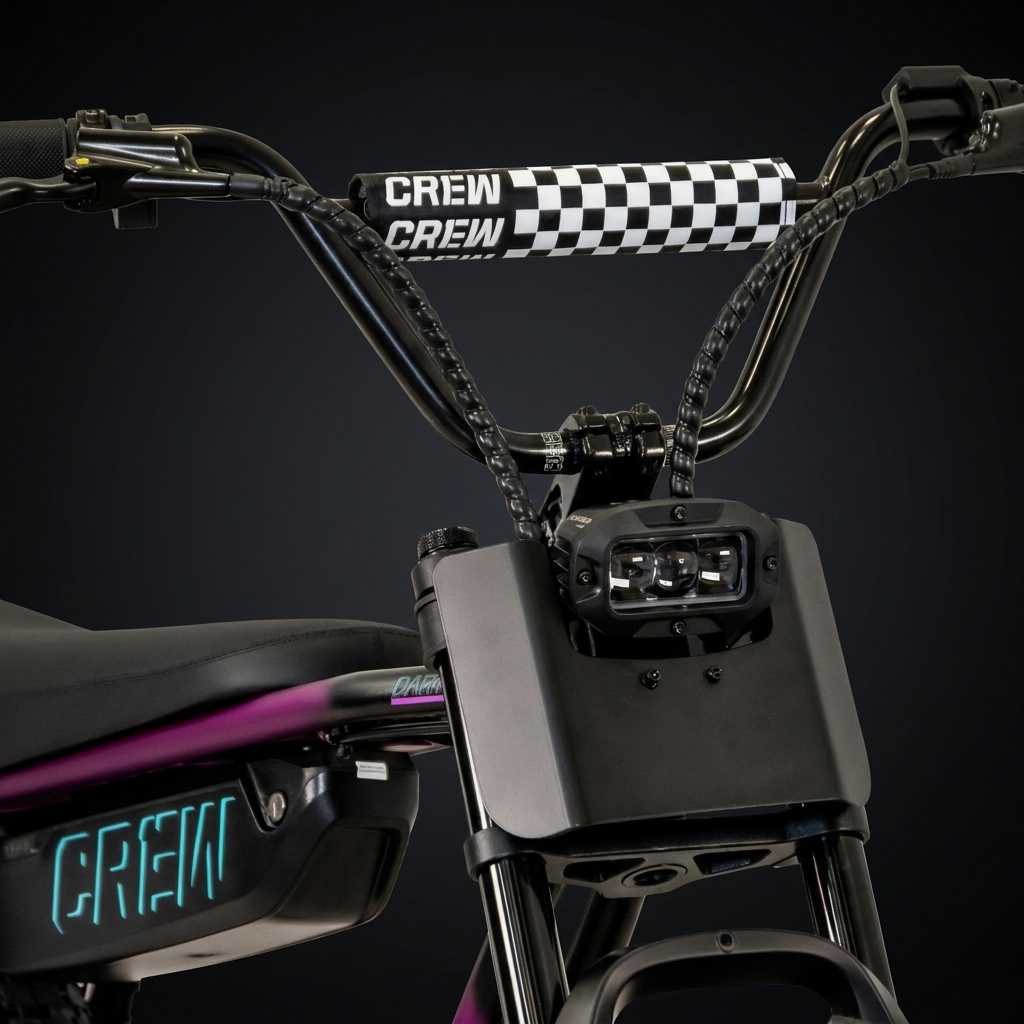

  • Front Plate and Upgraded Head Light

    Front Plate and Upgraded Head Light

    Upgraded 48 headlight with an integrated front plate that gives the bike an aggressive, moto-inspired look.

  • Crew Blockster Tires

    Crew Blockster Tires

    Offset Crew Blockster tires provide plenty of grip and cushion for whatever you throw at them. 20” × 4.0” in the front and 20" x 4.5" rear.

Know Your Ride

E-Bike & Off-Road EV Class System

E-BIKE AND OFF-ROAD EV CLASS SYSTEMPEDAL ASSIST (TOP SPEED)THROTTLESTREET LEGAL*AGE RESTRICTION**
CLASS 1 E-BIKE20 MPHNOYESNONE
CLASS 2 E-BIKE20 MPHYESYESNONE
CLASS 3 E-BIKE28 MPHNOYES16+
OFF-ROAD EV28+ MPHYESNO18+

*E-BIKE LAWS AND REGULATIONS CAN DIFFER BY STATE AND COUNTY, PLEASE FAMILIARIZE YOURSELF WITH THE SPECIFIC LAWS IN YOUR AREA.
**AGE RESTRICTIONS FOR E-BIKES MAY DIFFER BY LOCATION, BE SURE TO REVIEW YOUR LOCAL LAWS TO STAY COMPLIANT

Members save $50 on this bike

CG Rewards — Exclusive discounts, points on every order

Join Member Now

Compliance

CLASS-2 E-Bike Regulations

According to California Vehicle Code Section 312.5, a Class 2 electric bicycle is a low-speed throttle-assisted bicycle equipped with a motor that may propel the bicycle without pedaling but is not capable of providing motor assistance once the bicycle reaches 20 miles per hour. To qualify as an electric bicycle under California law, the motor must also have a maximum continuous rated power of no more than 750 watts.

This vehicle is categorized as a Class 2 electric bicycle for the following reasons:

  1. Throttle-Assisted Operation: The bicycle is equipped with a throttle that can propel the bicycle without the rider pedaling.
  2. 20 MPH Motor-Assistance Limit: Motor assistance is designed to stop providing propulsion once the bicycle reaches 20 miles per hour.
  3. 750-Watt Power Limit: The bicycle is equipped with an electric motor rated at no more than 750 watts.

These features allow the vehicle to be classified as a Class 2 electric bicycle rather than an off-highway electric vehicle, motorized bicycle, moped, or motorcycle, provided the bicycle remains in its original, compliant configuration.

Class 2 e-bikes are generally permitted anywhere conventional bicycles are allowed unless otherwise restricted by a local authority, property owner, park, trail system, or posted regulation. Riders are responsible for reviewing and following all applicable state and local laws before operating the bicycle.

Full disclaimer

 Some vehicles featured in this content are designed for off-road use only and may not be street legal in certain jurisdictions. Others may be eligible for
on-road use if properly registered and operated in accordance with local, state, and federal laws. It is the buyer’s responsibility to ensure compliance before use on public roads. All riding shown in our promotional materials is performed by experienced riders and professional stunt performers operating in controlled environments. The aggressive riding, stunt maneuvers, and high-speed sequences depicted are extremely dangerous and should never be attempted by untrained individuals or in uncontrolled settings. Always wear proper safety gear, including DOT-approved helmets and protective clothing. Misuse of any vehicle can result in serious injury or death. City Grounds and its affiliated brands assume no responsibility for injury, loss, or legal consequences arising from the misuse or improper operation of any products purchased through our platforms. By engaging with our content and products, you acknowledge and accept these risks. Ride responsibly. Respect your machine, your environment, and others around you.
