Crew Dart20

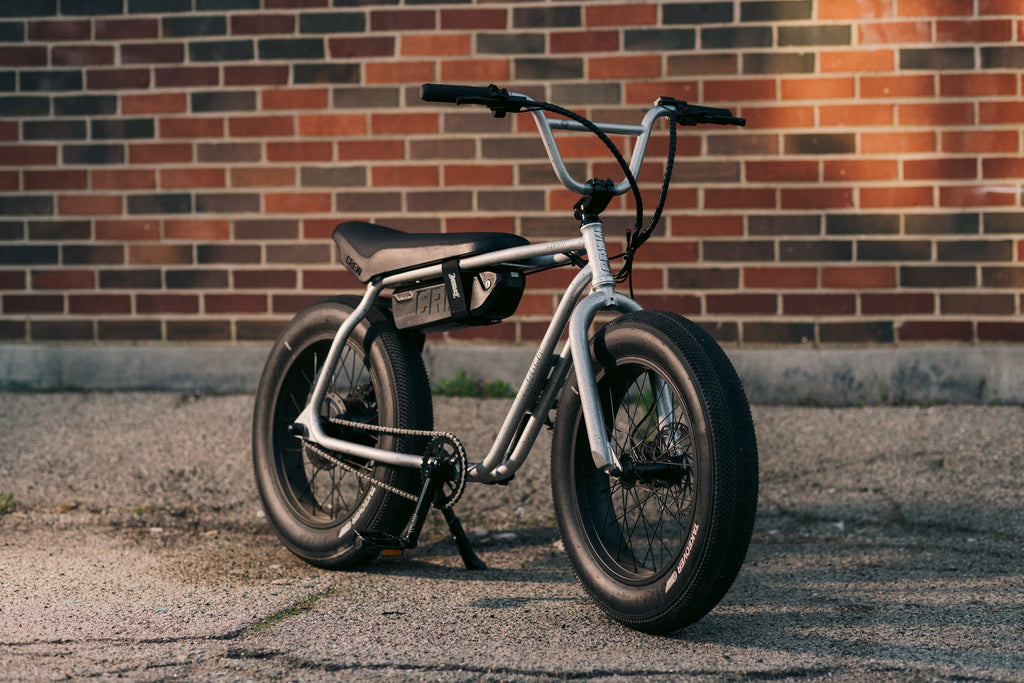

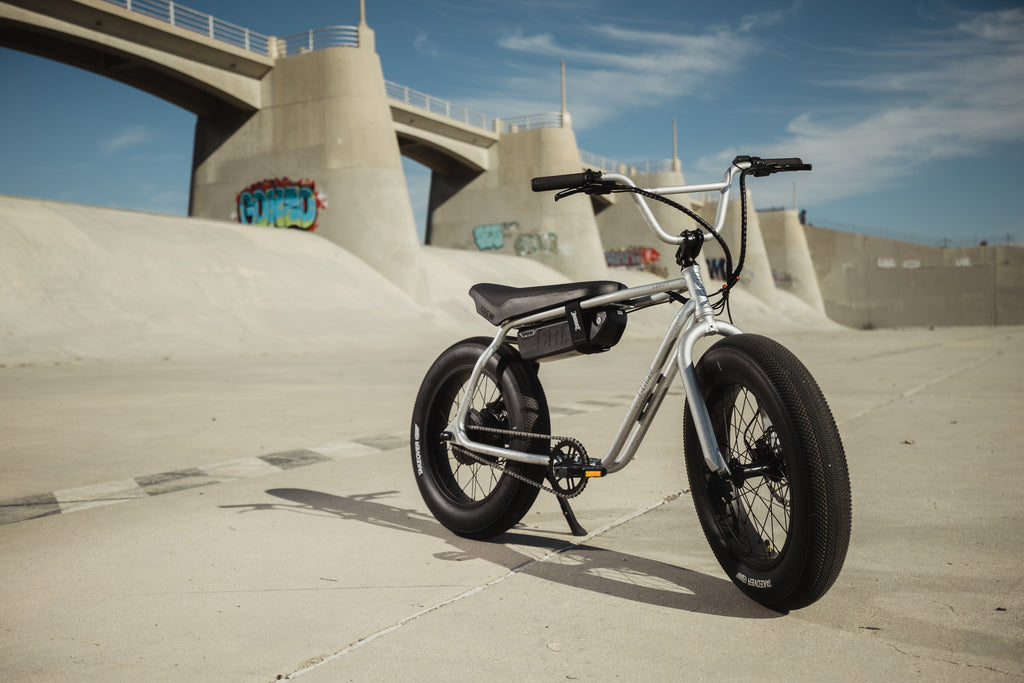

The Crew Dart V3 20" brings all the upgrades of the 24" model into a tighter, more compact build. Same bike life energy. Just built for riders who want more control without giving up performance. Class 2 compliant for a safe and legal ride. With a top speed of 20mph and a range up to 20 miles using throttle, and 25–35 miles with pedal assist, the Dart 20 delivers the power and versatility you need to ride farther, cruise longer, and stay in control.
The compact 20" setup offers a lower standover and a more agile, easy-to-handle feel, making it perfect for tighter spots and technical riding. An upgraded chromoly steel frame with refined geometry delivers a stable, responsive ride, while the new bench-style saddle improves comfort and balance with a clean, locked-in feel for longer sessions.
A 750w rear hub motor paired with a 48v / 10Ah battery delivers smooth, punchy power, backed by hydraulic disc brakes for confident stopping control. Fat 20" x 4.0" Crew Takeover Tires add grip, shock absorption, and street-ready style—making the Dart V3 20" a powerful, approachable choice for everyday rides and full ride-outs. Recommended for riders 4'10"-5'10".
-
Frame: Chromoly 20” Loop Tail Fork: Chromoly 20” Crank: Crew Chromoly 155mm, 36t Chainring Headset: 1-1/8" Sealed Bearings Wheelset: 20" Double Wall Rim, Sealed Bearing Hub Chain: KMC 1/8" Heavy Duty Freewheel: Chromoly 16t Seat: Crew Bench Style Seat Stem: BMX 22.2mm Clamp, 50mm Handlebars: Crew MK2-Narrow 2-PC Chromoly, 6.8” Rise, 680mm Width, 22.2mm Clamp Brakes: Hydraulic Disc Brakes, F: 180mm Rotor / R: 160mm Rotor Tires: Crew Takeover 20” × 4.0” Fat Tire Battery: 48V 10Ah Lithium-ion Motor: 750W Hub Motor Display: 48V LCD Display Throttle Style: Thumb Throttle Controller: 48V 750W, 3 Modes – Eco, Sport, Race Sensor: Pedal Cadence Sensor Range: Up to 20 miles (throttle). Up to 40 miles depending on PAS mode and terrain Speed: 20 MPH Charger: 48V 2A Charger Lights: Rear LED Taillight Weight: 61 lbs Rider Height: 4'10" - 5'10" Weight Capacity: 275 lbs Handbook: Dart20 Handbook -
-
All bikes purchased through City Grounds MUST be assembled by a certified bike shop mechanic. If the bike is NOT built by a certified bike shop mechanic, any warranty will be VOID. We will request for an assembly receipt as proof of professional installation.
For all warranty claims, please contact our Warranty Team at warranty@citygrounds.com. So that we can help you in a timely manner, make sure to include the following:
- 1. Order Number (we will confirm date of purchase and determine if the item is still under the manufacturer’s warranty time limit)
- 2. Brief description of the claim
- 3. Photographs
- 4. If the item is a bike or frame, include the serial number
We evaluate all warranties case-by-case to determine the best course of action and get you serviced to the best of our ability!
Warranty does not apply to the following:
- • Any part of a product that has been installed, altered, repaired, or misused
- • Damage from unintended style of riding, abuse, neglect, accident, and racing
- • Normal wear and tear of any product (including but not limited to - saddles, grips, tires, tubes, cables, brake pads, chains)
- • Failure to provide regular maintenance of any product
Labor and shipping are the responsibility of the customer. We do not cover parts purchased and labor performed by another bike shop.
Note: Warranty is for original owner only.
Product Highlights

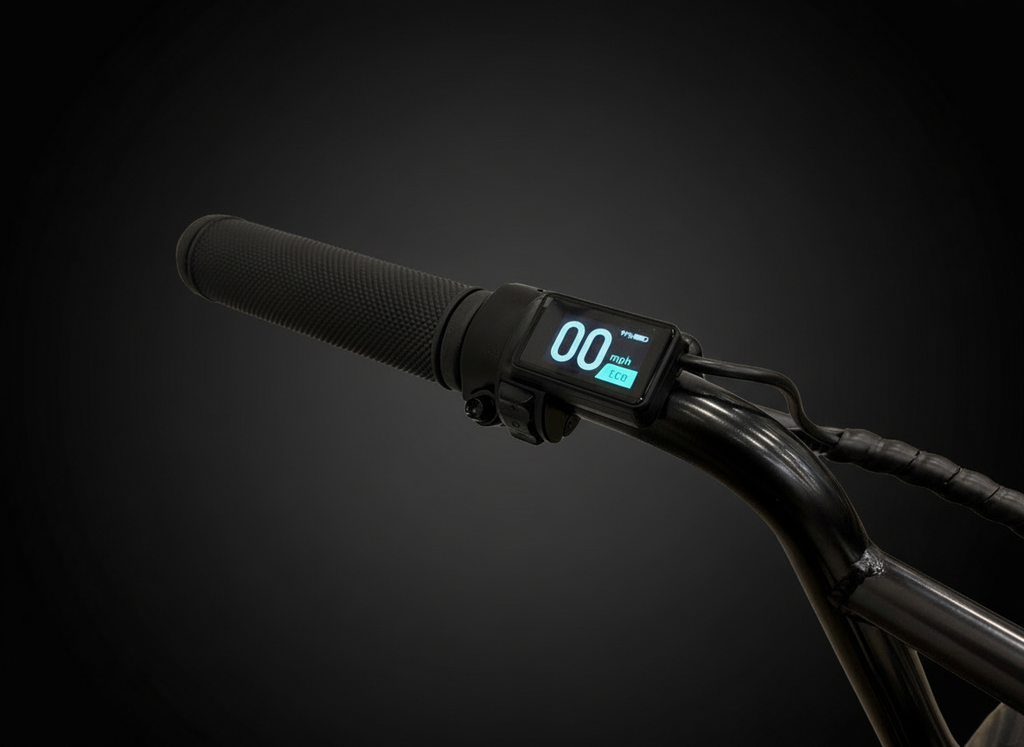

Display
LCD Display with full color and a compact size. Giving you all the important info you need while riding.

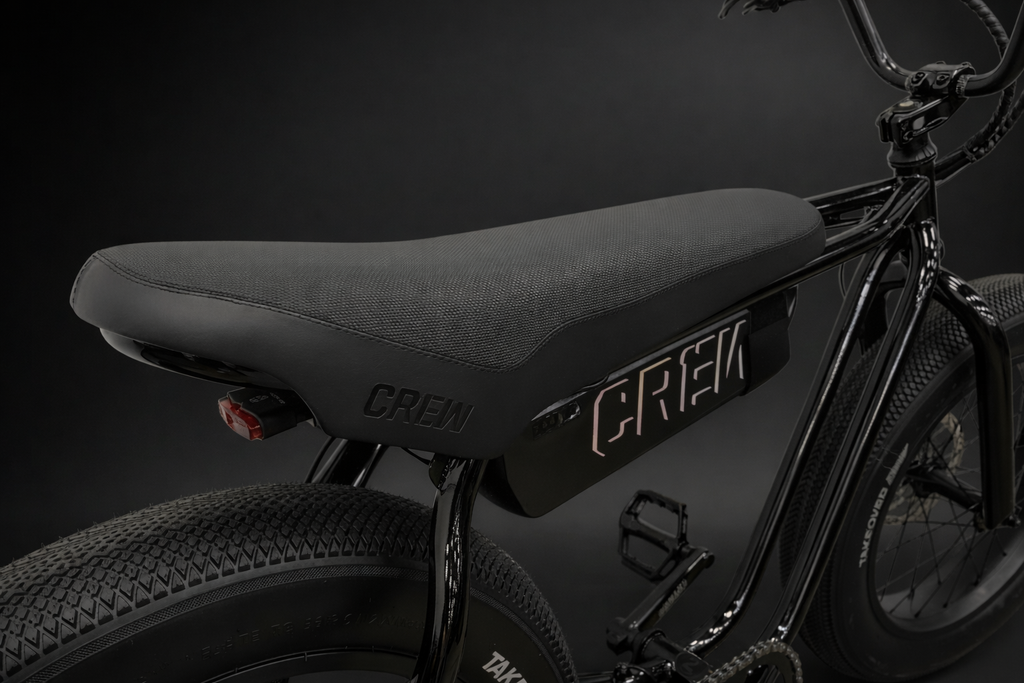

Saddle
New and improved saddle with a grippier material and cradled design keeps you locked in while riding.

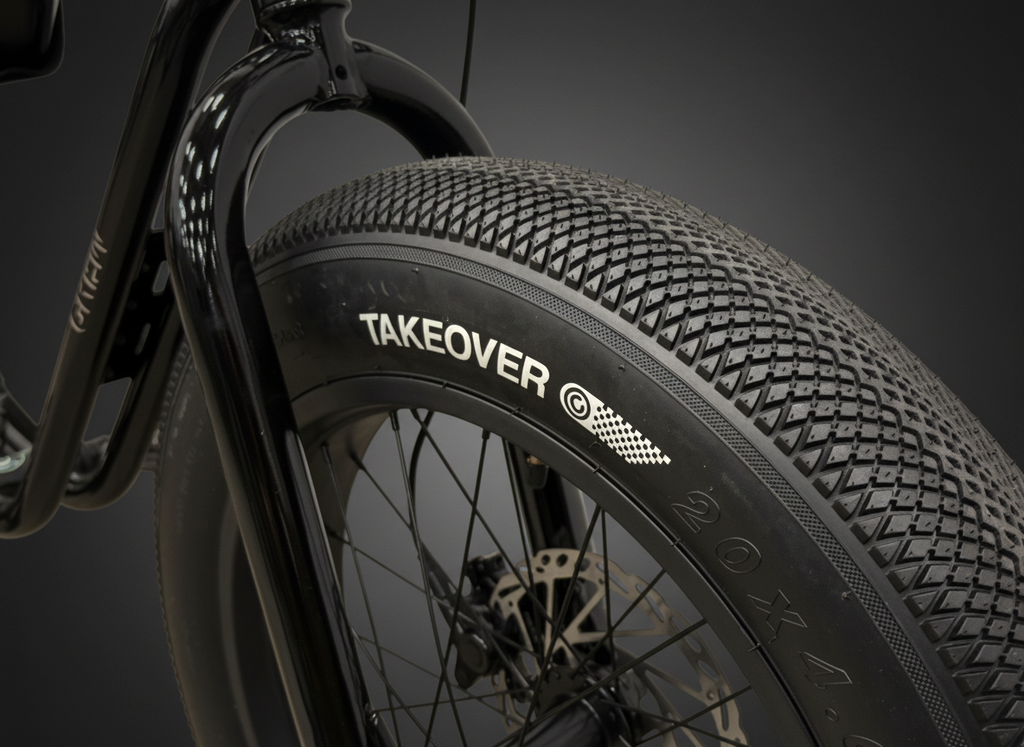

Tires
20" x 4.0" Crew Takeovers bring grip, shock absorption, and street-ready style.

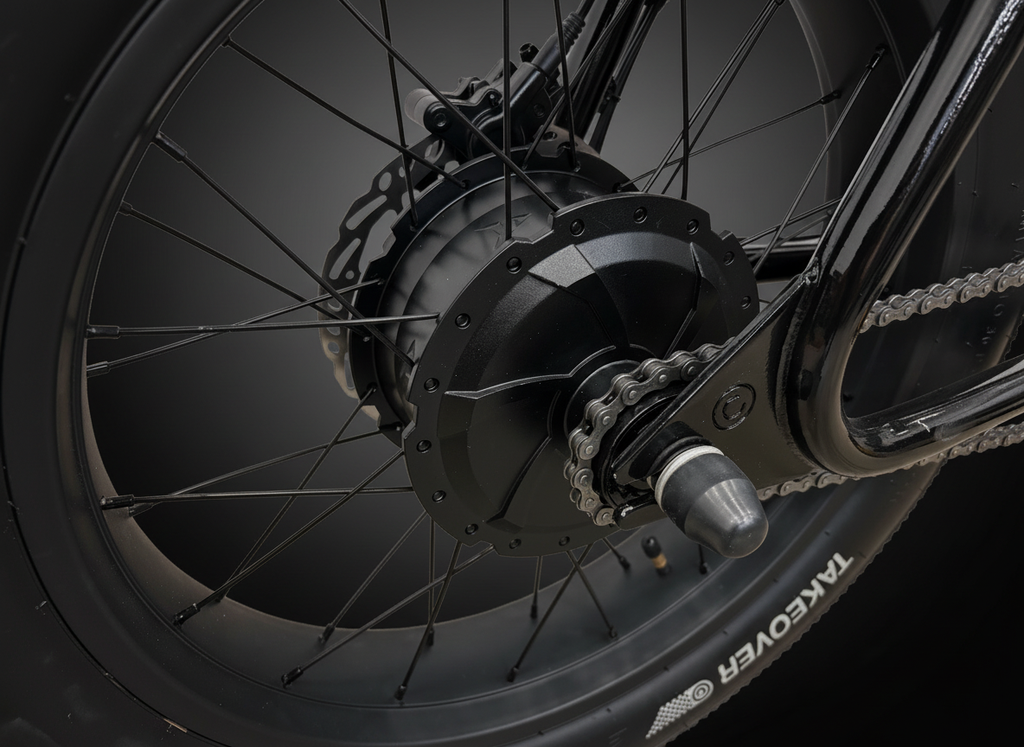

Motor
750w rear hub motor and a 48v / 10Ah lithium-ion battery. 20mph top speed for a Class 2 compliant legal ride.

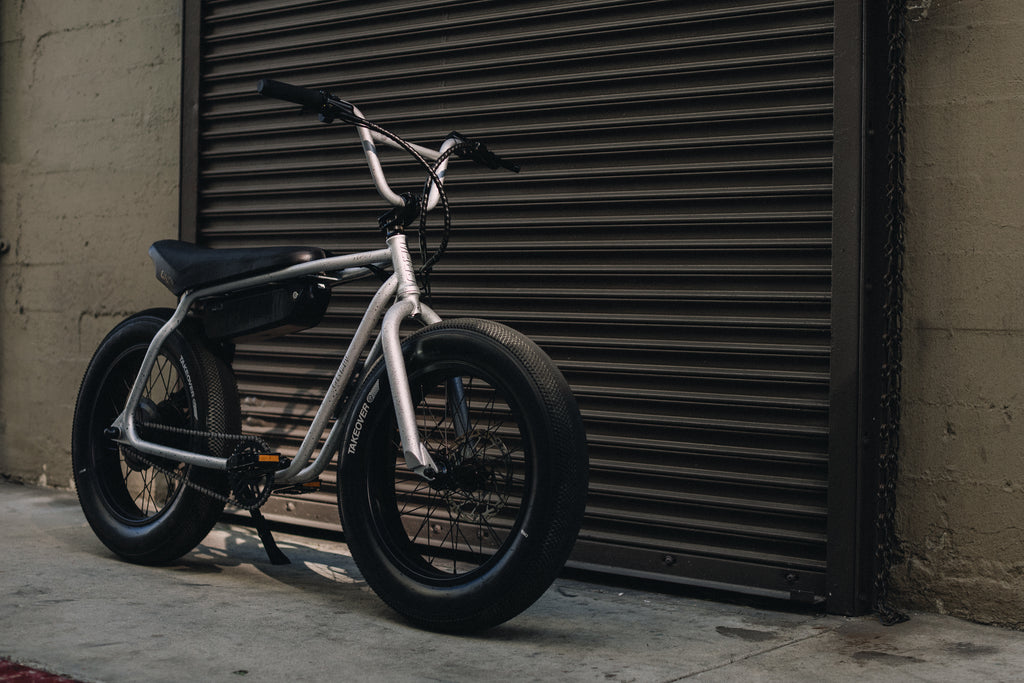

Dart20
The Crew Dart V3 20" brings the upgrades of the 24" model into a more compact, easier-to-handle build. Smaller wheels, premium frame construction, and the same bike-life attitude — designed for riders who want added control without sacrificing performance. Class 2 compliant for a safe, street-legal ride.
Product reviews
Write a ReviewNew e-bike Dart20

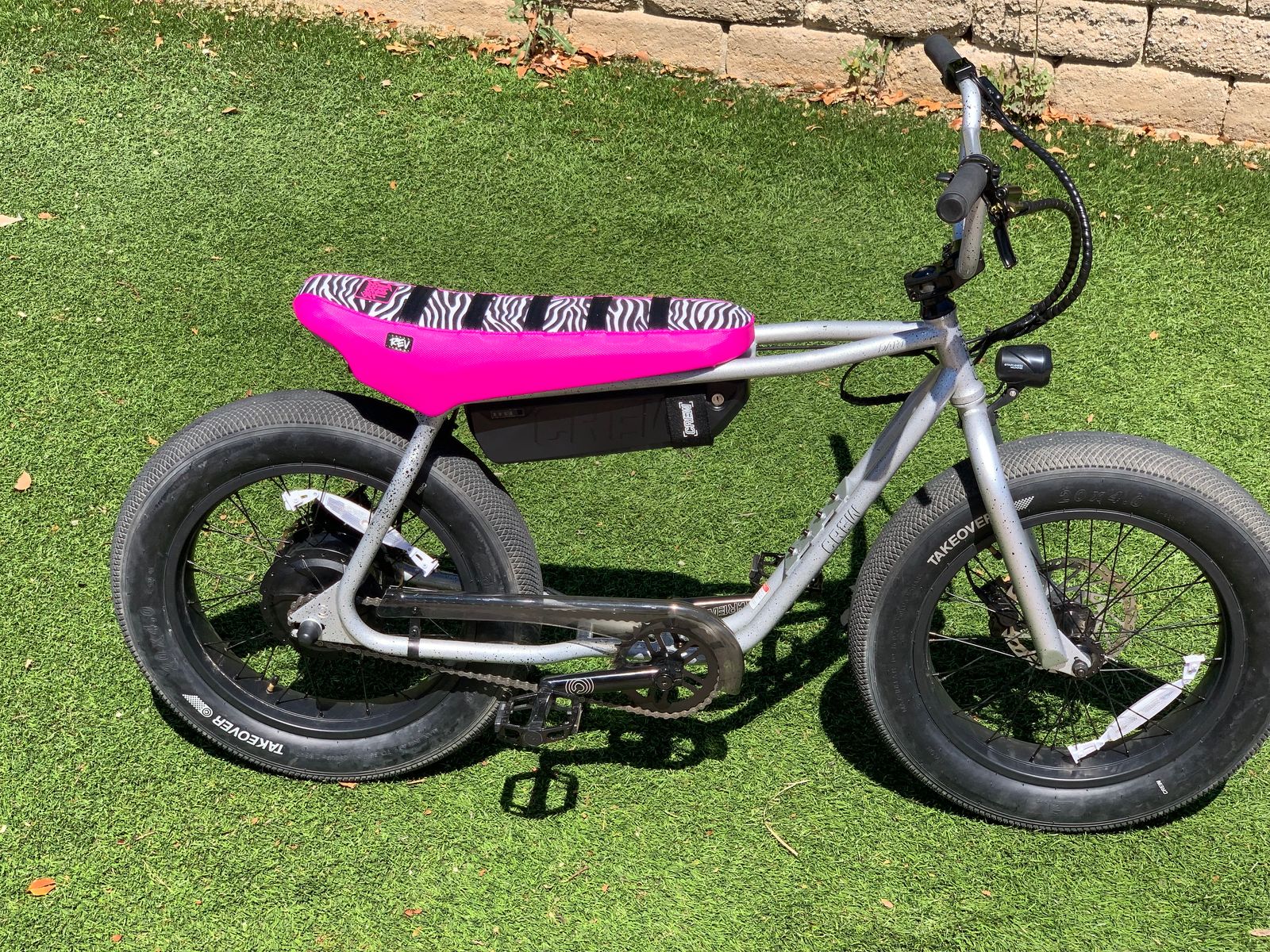

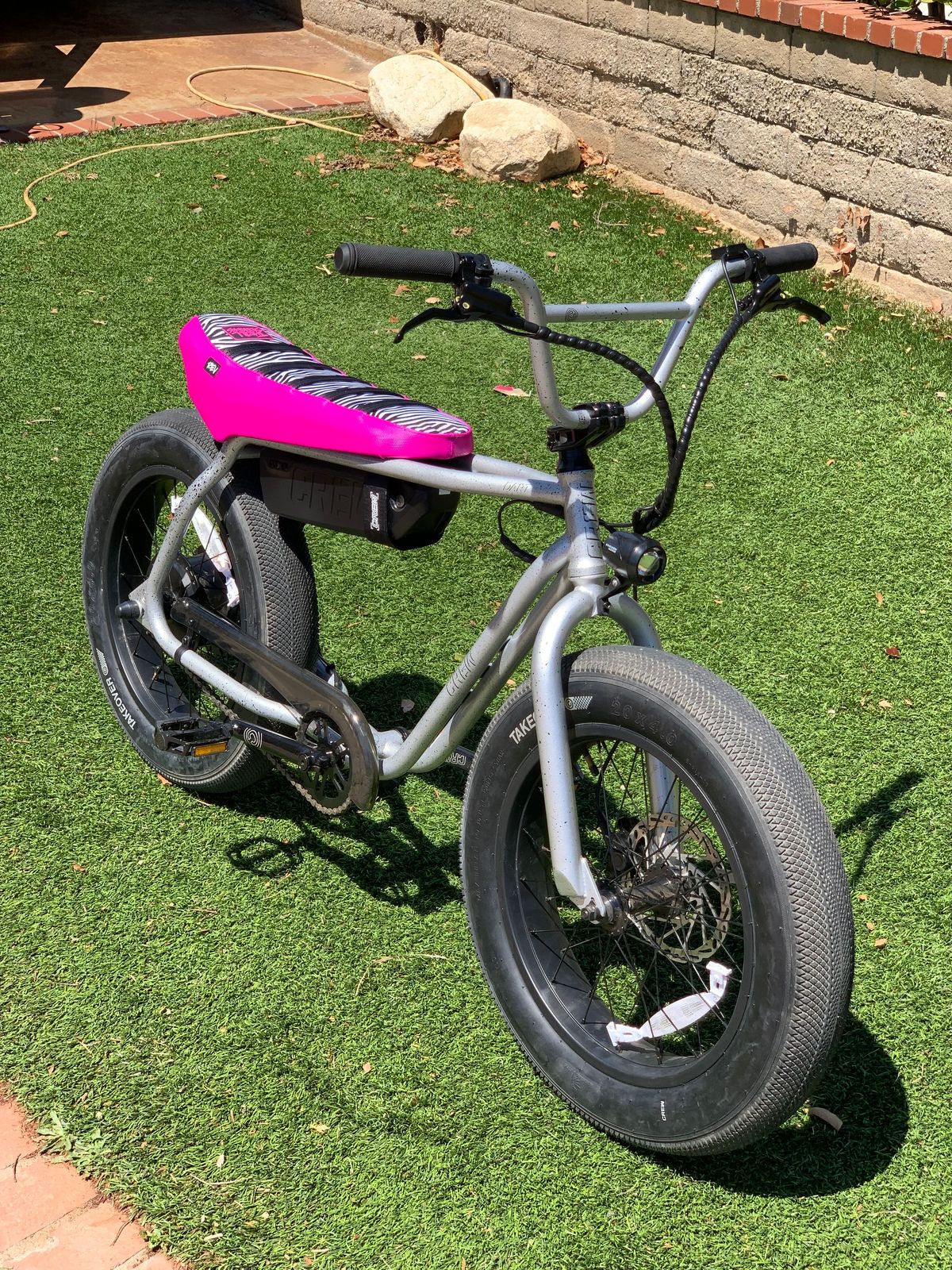

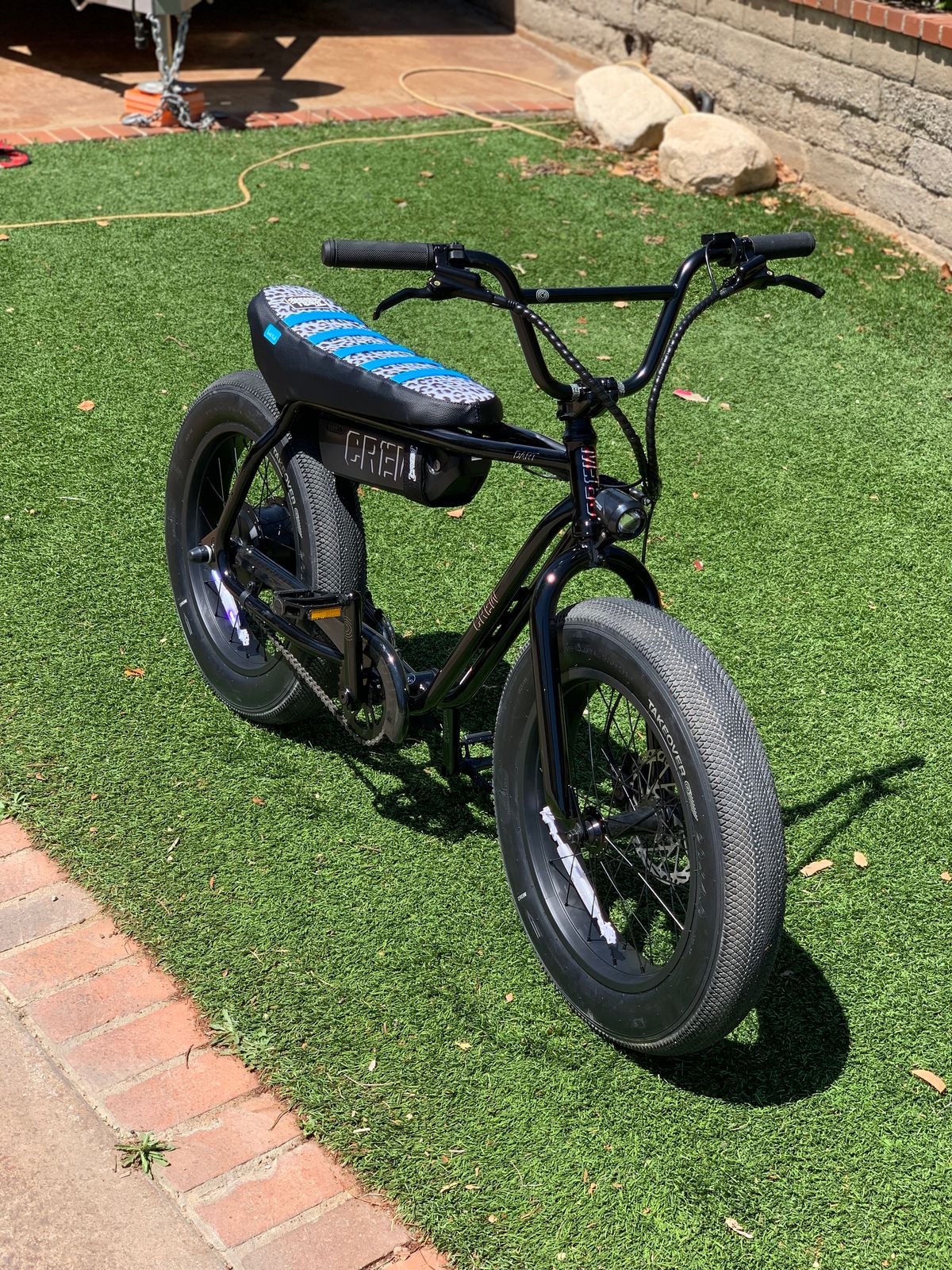

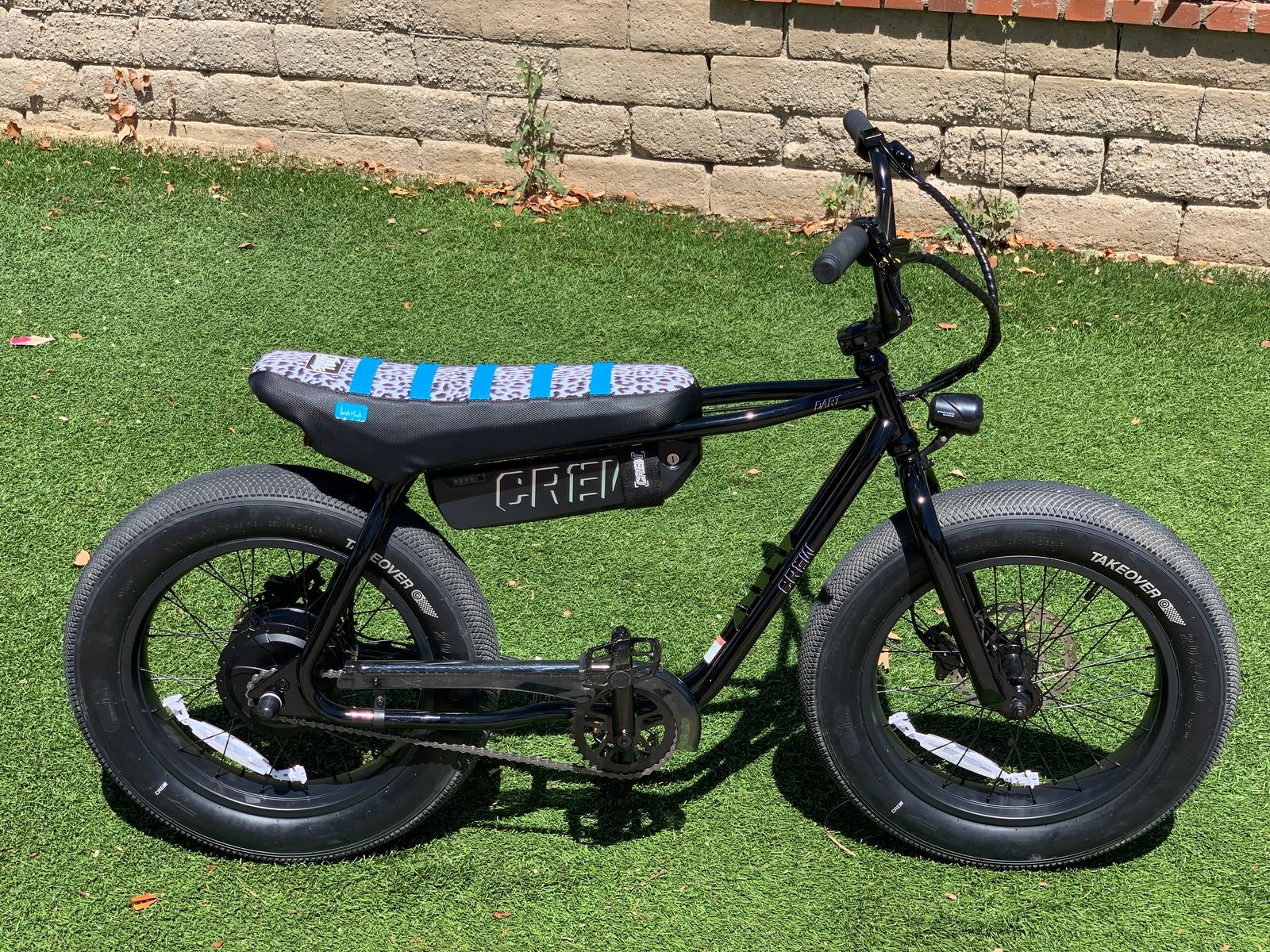

My son loved his Dart20. He's 11 and it fits him really well. The bike is faster than I thought but I think you can throttle down the speed on an app. My oldest son is looking forward to the latest Dart release. He's excited about the suspension.
Crew Bike serves the commuter purpose
Sound bike that gets my son around the neighborhood to practices and school
Good bike
My son loves it
Great bike tons of speed
Bike is pretty awesome. We use it as a pit bike at the motocross tracks. Eco has enough power to move the bike with ease which definitely helps it last a full charge for the whole day with enough left for the kids to have fun also. My kids rode it on race mode for 3 hours before using up the battery. I'm tall so I should have gone with the 24" model but this one works great. I'm in no way disappointed.
Great bike!
Got this for my son for junior high graduation. He is on the shorter side 5’2” so the size was perfect. He loves the bike. Well built and looks great. Looks better than all the macfox’s we see around. Only downsides 1. No key to start the bike. 2. There is a bit of lag from hitting the throttle to when the bike accelerates. Definitely not deal breakers.
